HEL Series

Rugged display solutions

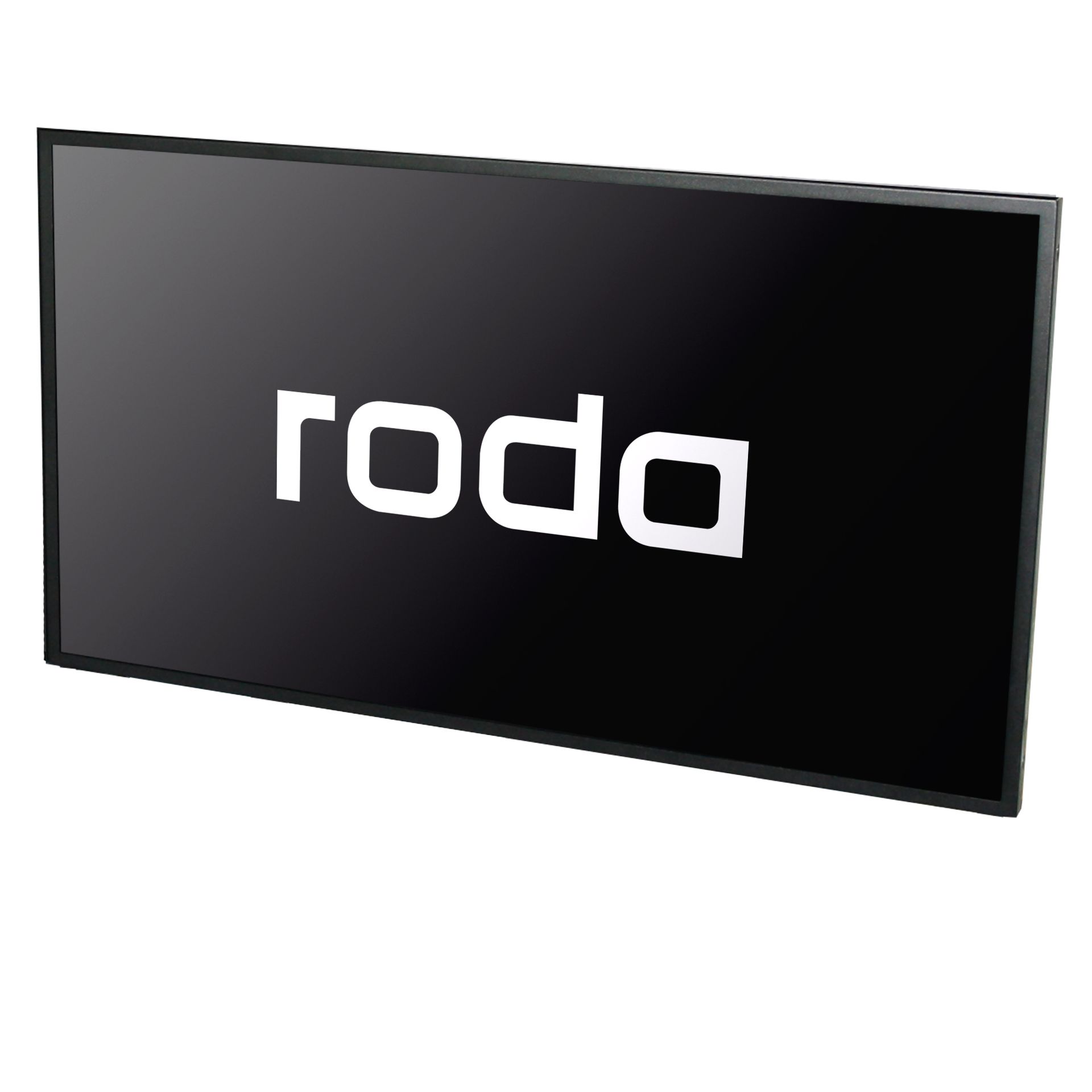

HEL65

rugged 65" display

The 65" HEL4.0 roda display is the only rugged Tempest NATO 27 SDIP Level B large format display on the market. The display, with rugged aluminium housing, has a resolution of 4k UHD and still convinces through its slim design. Matching accessories such as VESA mountings, stands, and transport and storage mounts additionally allow for mobile and deployable applications. Connection interfaces can be integrated according to customer requirements.

Technical specifications

Display

  • 65" display with extra narrow bars

Resolution

  • UHD 4k, 3840 x 2160 pixel

Aspect ratio

  • 16:9

Colour display

  • Display up to 16.7 million colours or 256 grayscales

Viewing angles

  • vertical: 178° horizontal: 178°

Contrast

  • 4000:1

Brightness

  • type. 450 cd/m² without EMC pane

Reaction time

  • 8 ms (GtoG)

Power supply

  • 230 VAC voltage input and output

Certification

  • IP54
  • MIL-STD 810F
  • MIL-STD461F (designed to meet)
  • TEMPEST NATO 27 SDIP Level B (ER)

VESA

  • 400

Housing

  • Hardened aluminium housing

Colour

  • RAL 1013 HR matte with fine structure

Dimensions

  • 1453 x 834 x 93.4 mm

Weight

  • approx. 56 kg
