Panther DF10

full-rugged 5.7" Android handheld

The fully-rugged Panther DF10 is roda‘s new Android™10-based handheld and also the lightest model in the range at 480g. As one of the few devices in the field of fully-rugged handhelds, the 5.7“ pad offers a large number of possible interfaces with military connectors, such as Fischer connectors. In addition to MIL-STD-810H, the IP67 certified device also inherently complies with MIL-STD-461G according to Ground Navy or optional Ground Army.

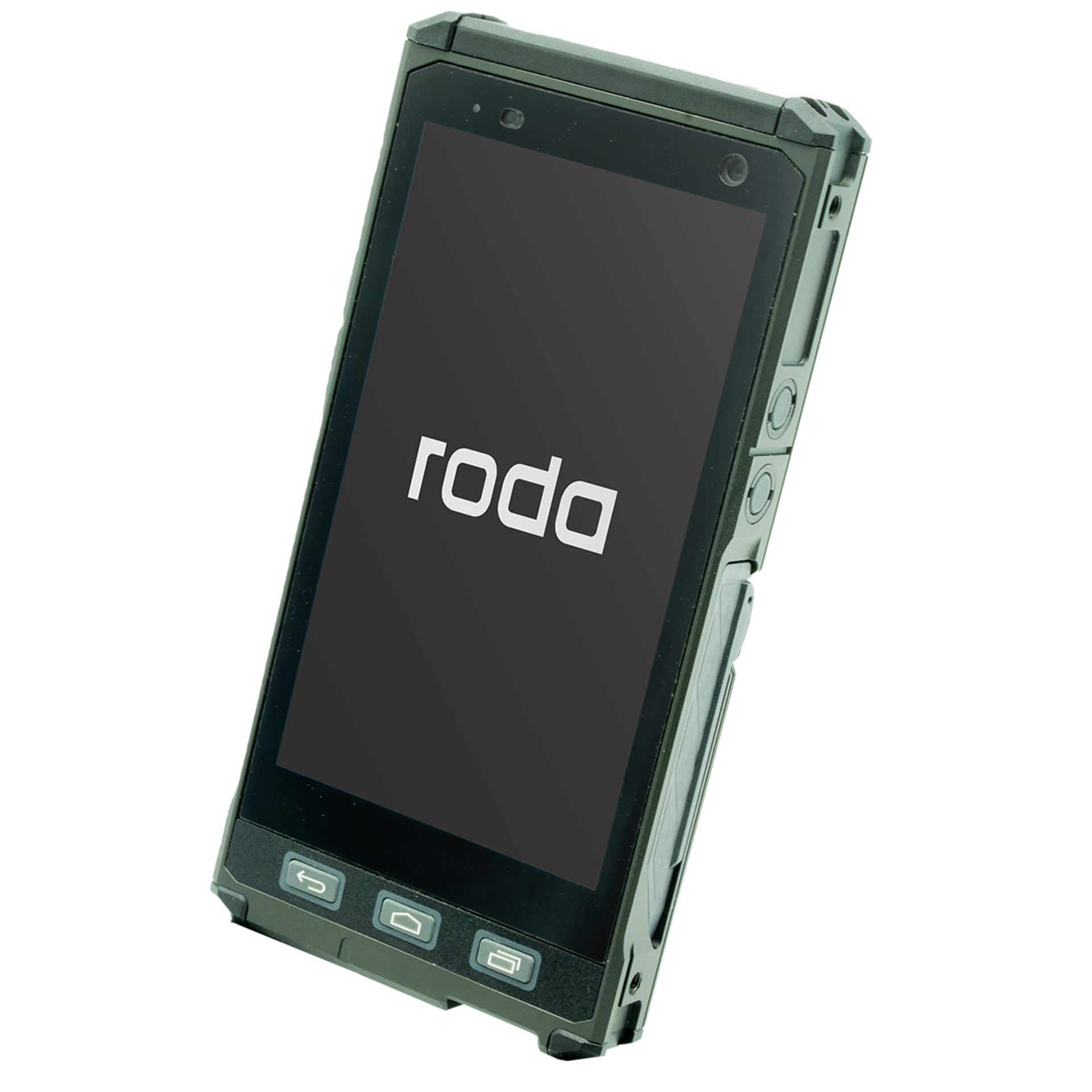

roda Panther DF10 right view

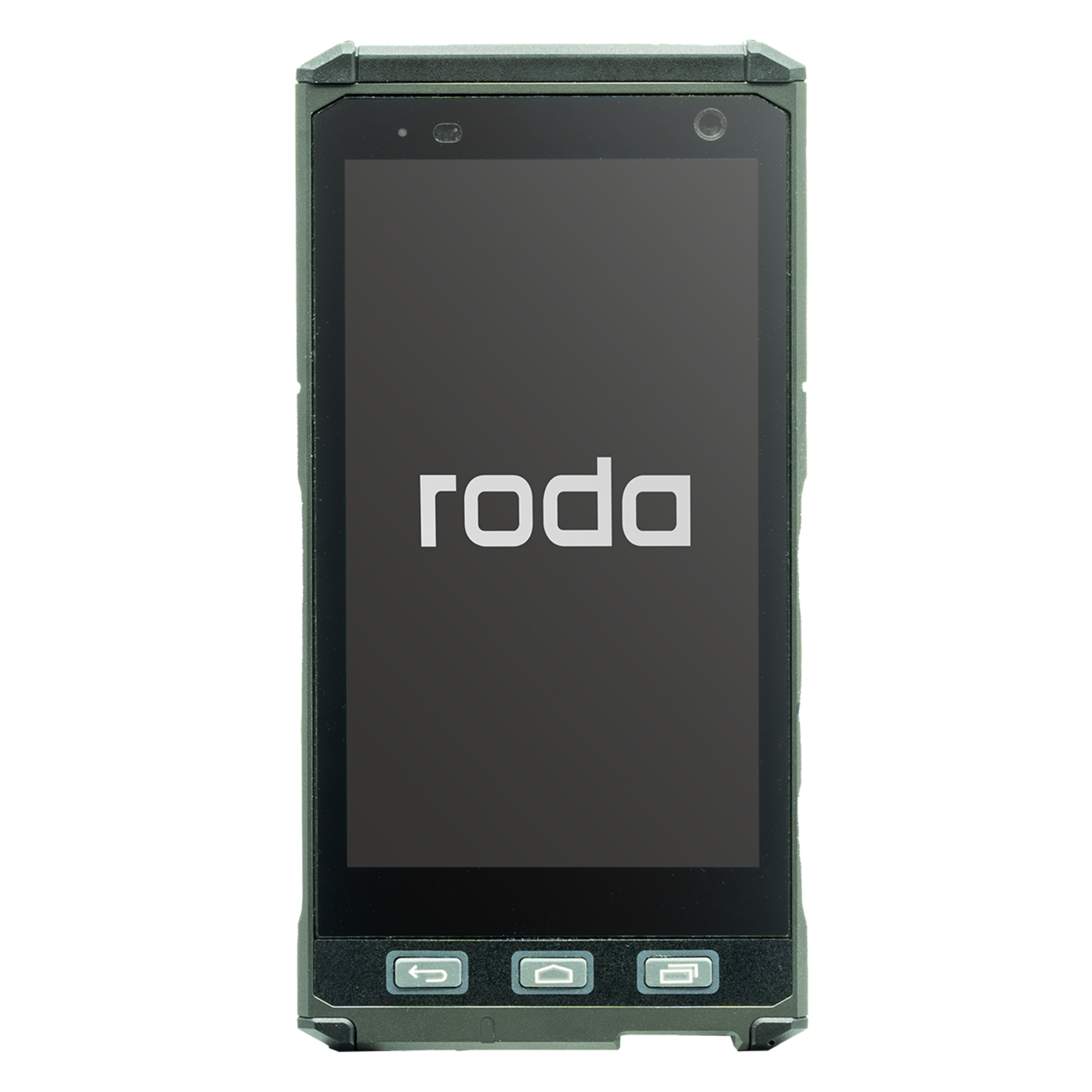

roda Panther DF10 front side

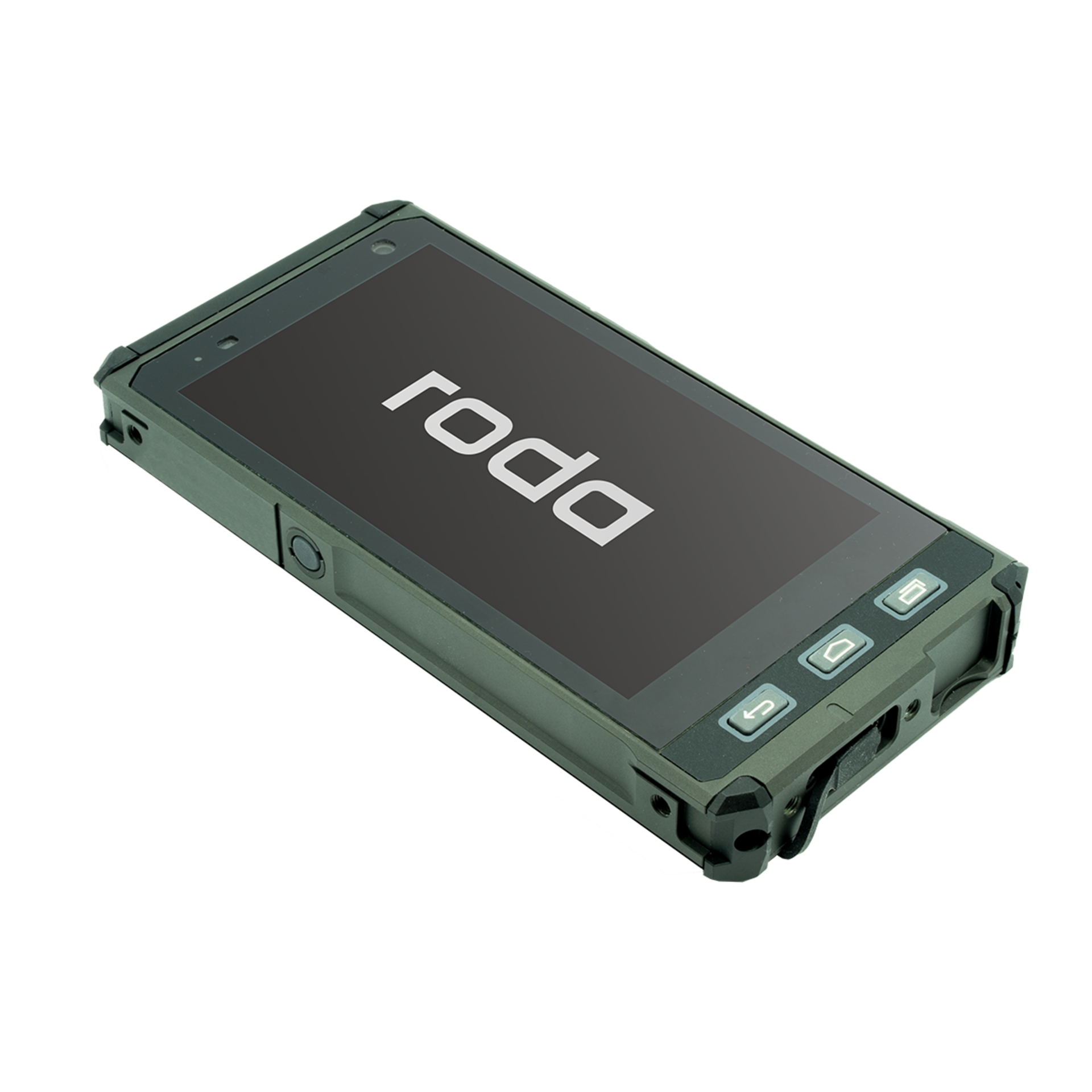

roda Panther DF10 left view

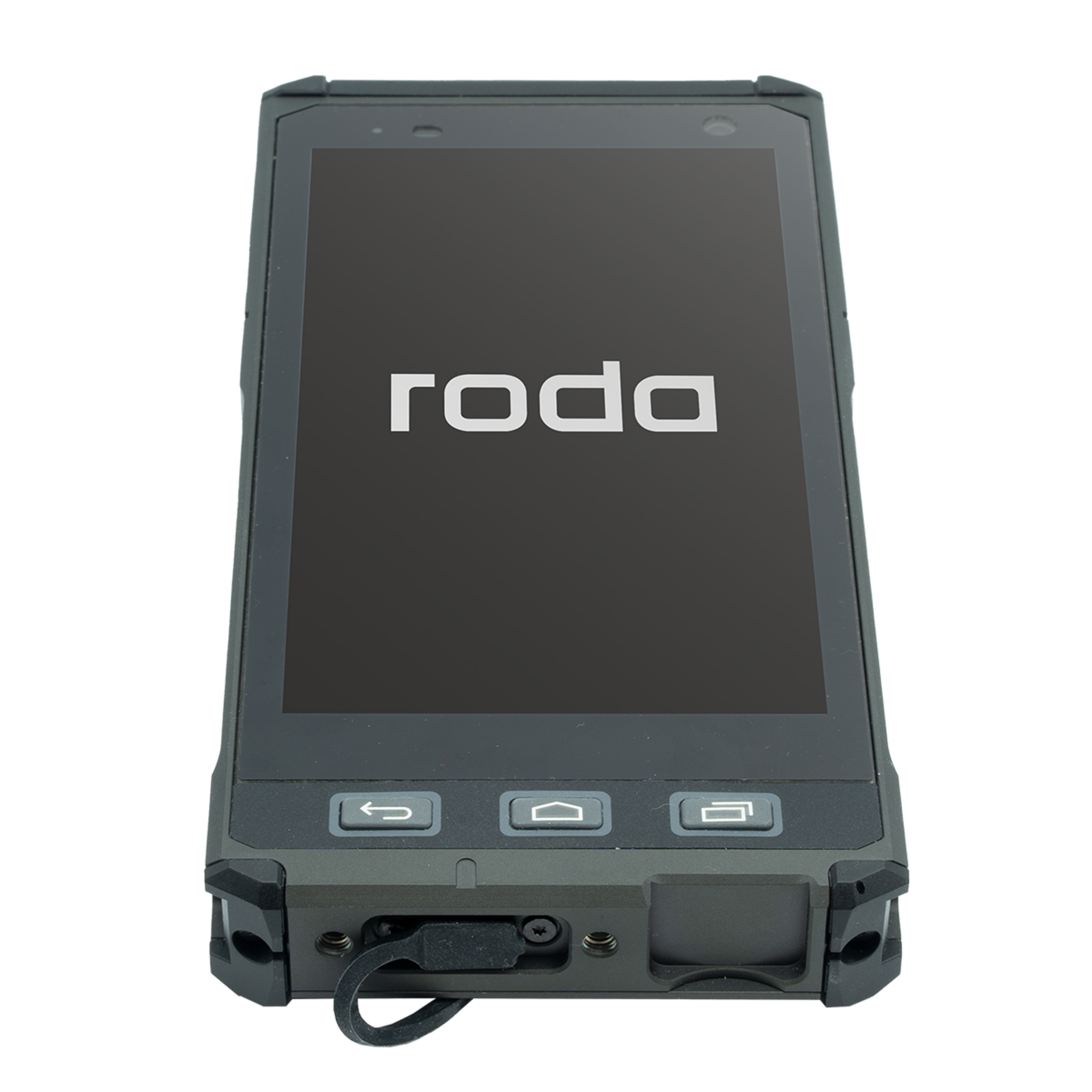

roda Panther DF10 front view

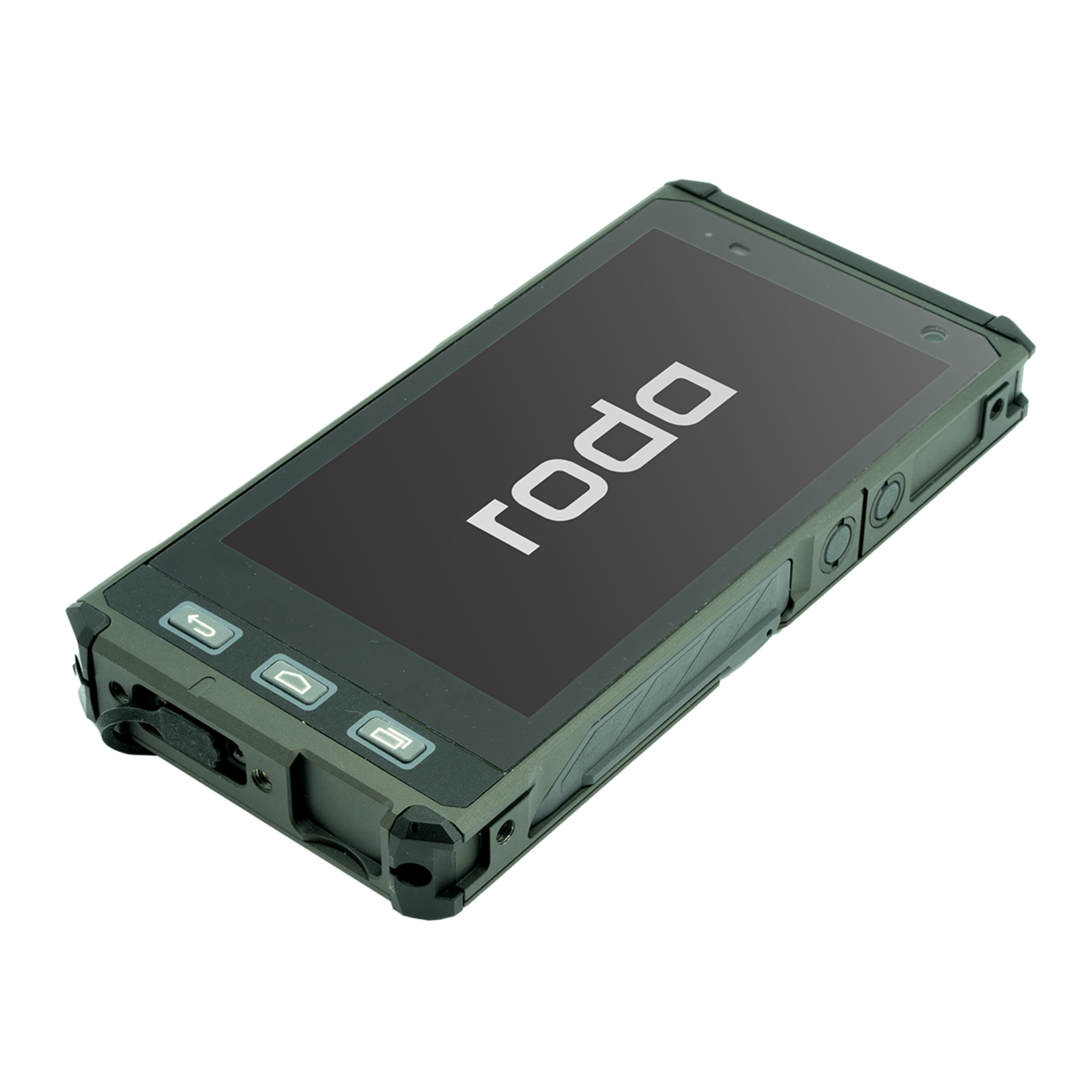

roda Panther DF10 right view

Technical specification

Display

  • LCD 5.7“ HD (720 x 1280)
  • LED backlight
  • Sunlight readable

Touch

  • resistive 2-point touch screen

CPU

  • MEDIATEK i350 (MT8365) ARM Cortex-A53 Quad Core 2.0 GHz

Memory

  • 3 GB LPDDR4

Storage

  • 128 GB ROM eMMC
  • Optional: Micro SDXC card slot, up to 128 GB

Camera

  • 5 MP front side
  • 13 MP rear side

Interfaces

  • 1x USB2.0 OTG Typ-C
  • 1x SD card slot
  • 1x micro SD card slot
  • Optional:
    • 1x Docking Port
    • 1x MIL Fischer connector (bottom side)
  • the following signals are available:
    • USB2.0, MLAN, RS232, VGA, Audio

Connectivity [WLAN / BT / GPS]

  • WLAN 802.11 a/b/g/n/ac
  • Bluetooth 5.2
  • GNSS:GPS/Glonass/Beidou/Galileo/QZSS

Power supply

  • Li-ion battery, 3.7 V, 4170 mAh
  • Hot-swap  battery
  • AC-input USB-C 60 W, 100-240 V, 50-60 Hz
  • Optional: Double capacity Li-ion battery, 3.7 V, 8100 mAh

Security

  • ARM® TrustZone® (Built-in) security

Operating System

  • Android™ 10

Dimensions [W×H×D]

  • 184 x 90 x 23 mm

Weight

  • 440 g

Protection class

  • IP67

Zertifizierung

  • MIL-STD-810H
  • MIL-STD-461G Ground Navy
  • Optional: MIL-STD 461G Ground Army
