Panther DK13

full-rugged customizable 12" tablet

Panther DK13

rugged 12" tablet PC

The 12" tablet PC Panther DK13 is characterised by its extraordinary opportunities for customisation and enormous ruggedness. The variety of available modules and possible interfaces with industrial or military plugs is enormous, which is proven by countless installations in protected and armoured vehicles.

In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky laptop, so you can rely on sophisticated technology.

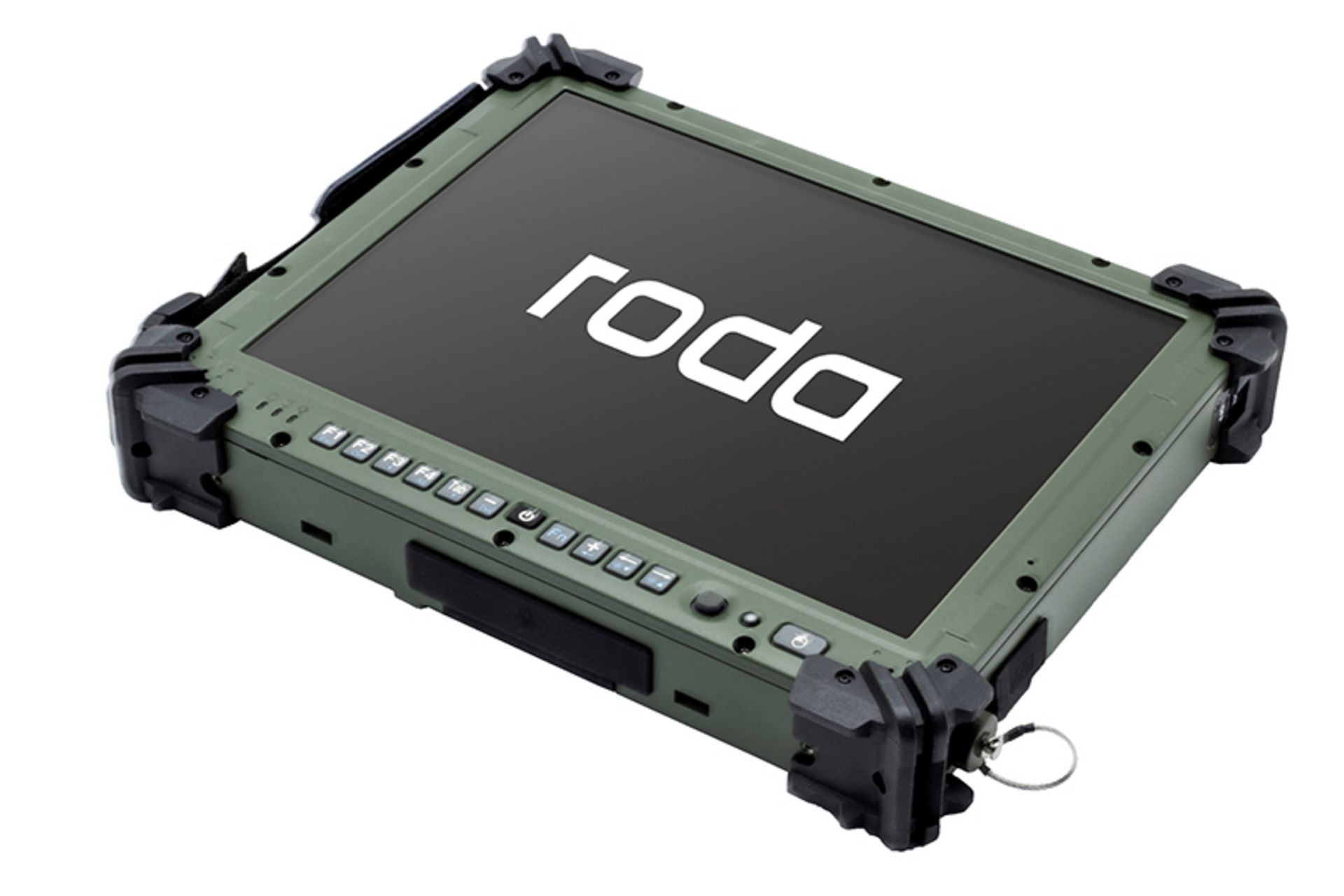

roda Panther DK13 right view

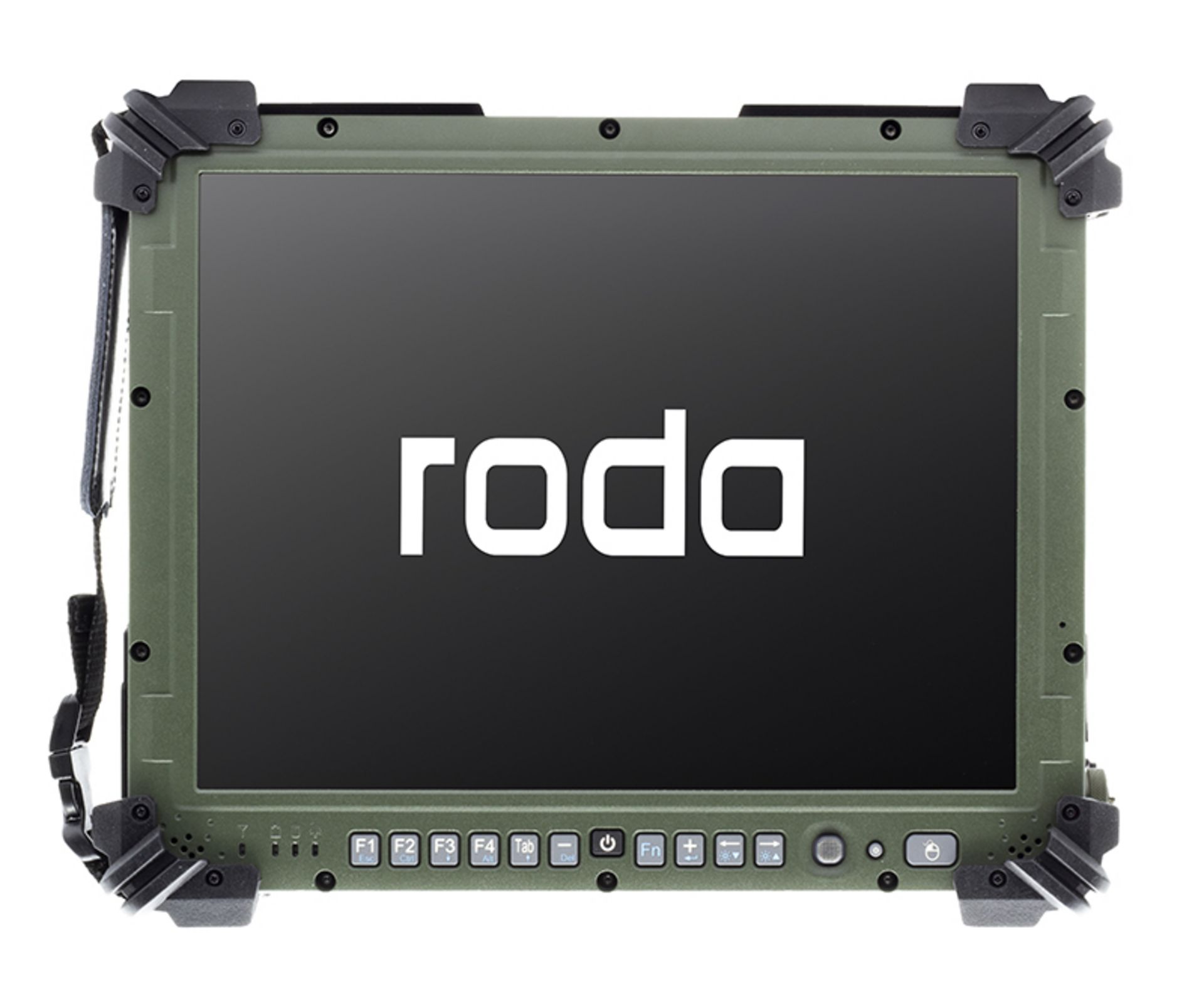

roda Panther DK13 front view

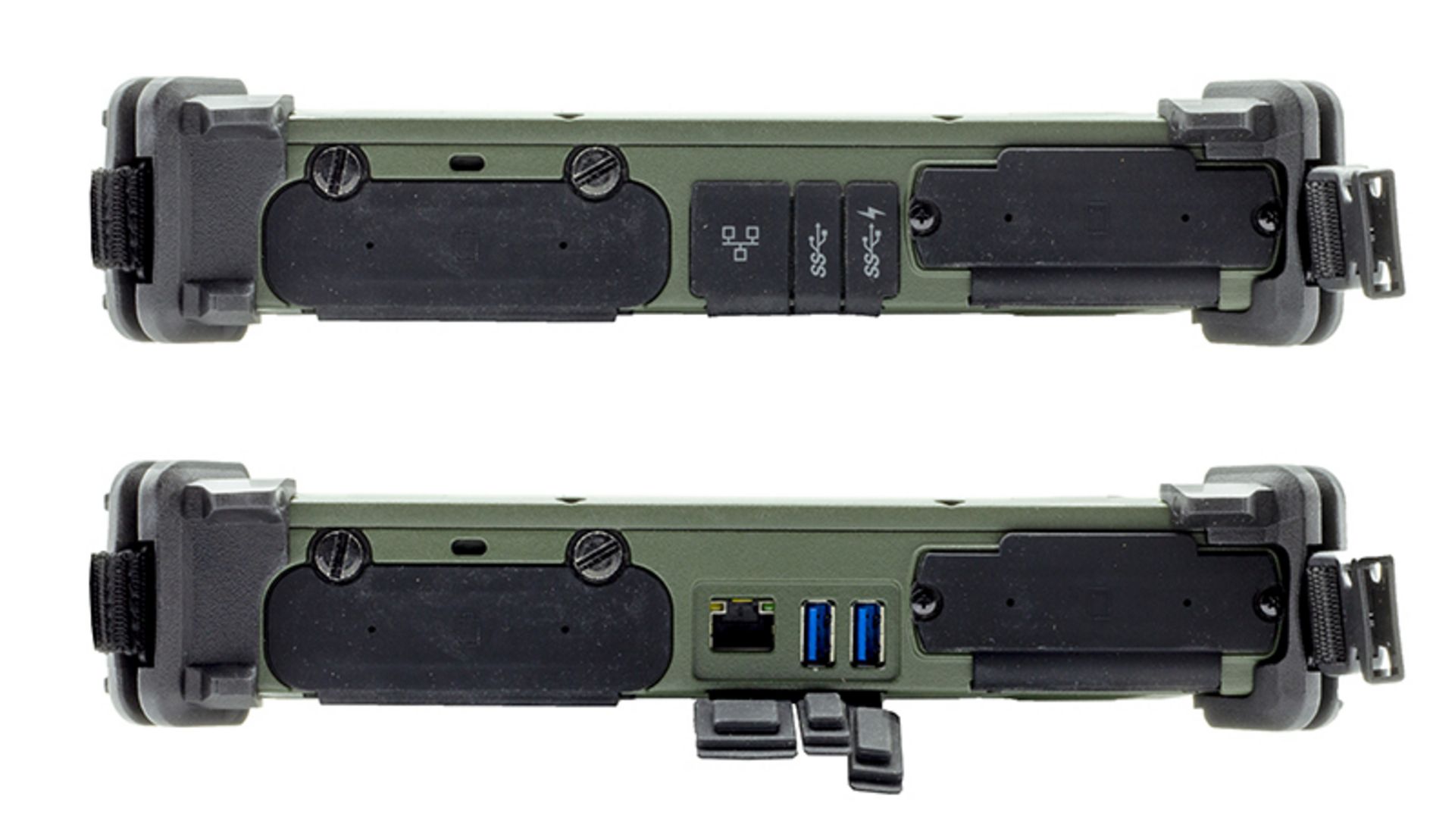

roda Panther DK13 left side

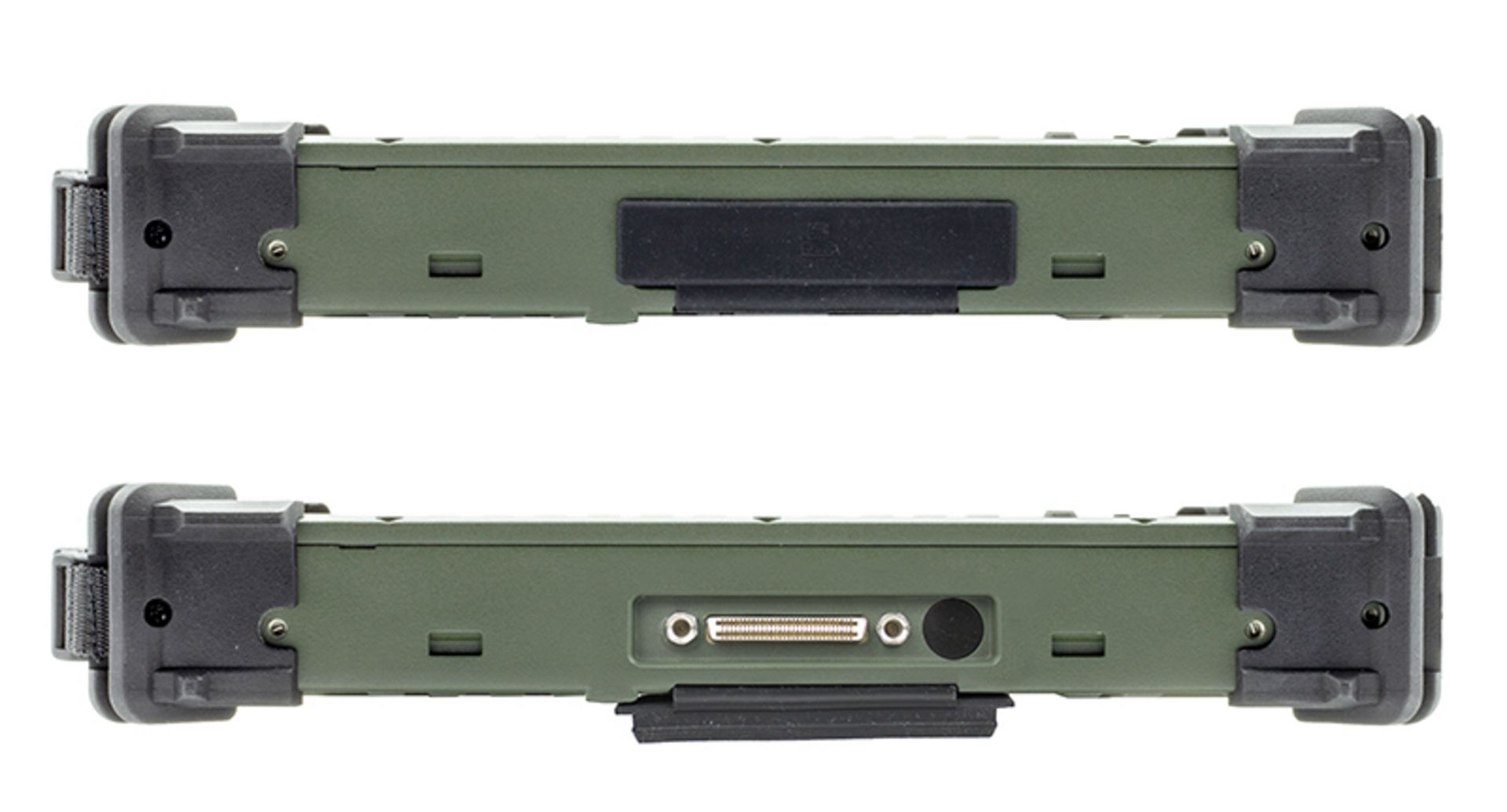

roda Panther DK13 bottom side

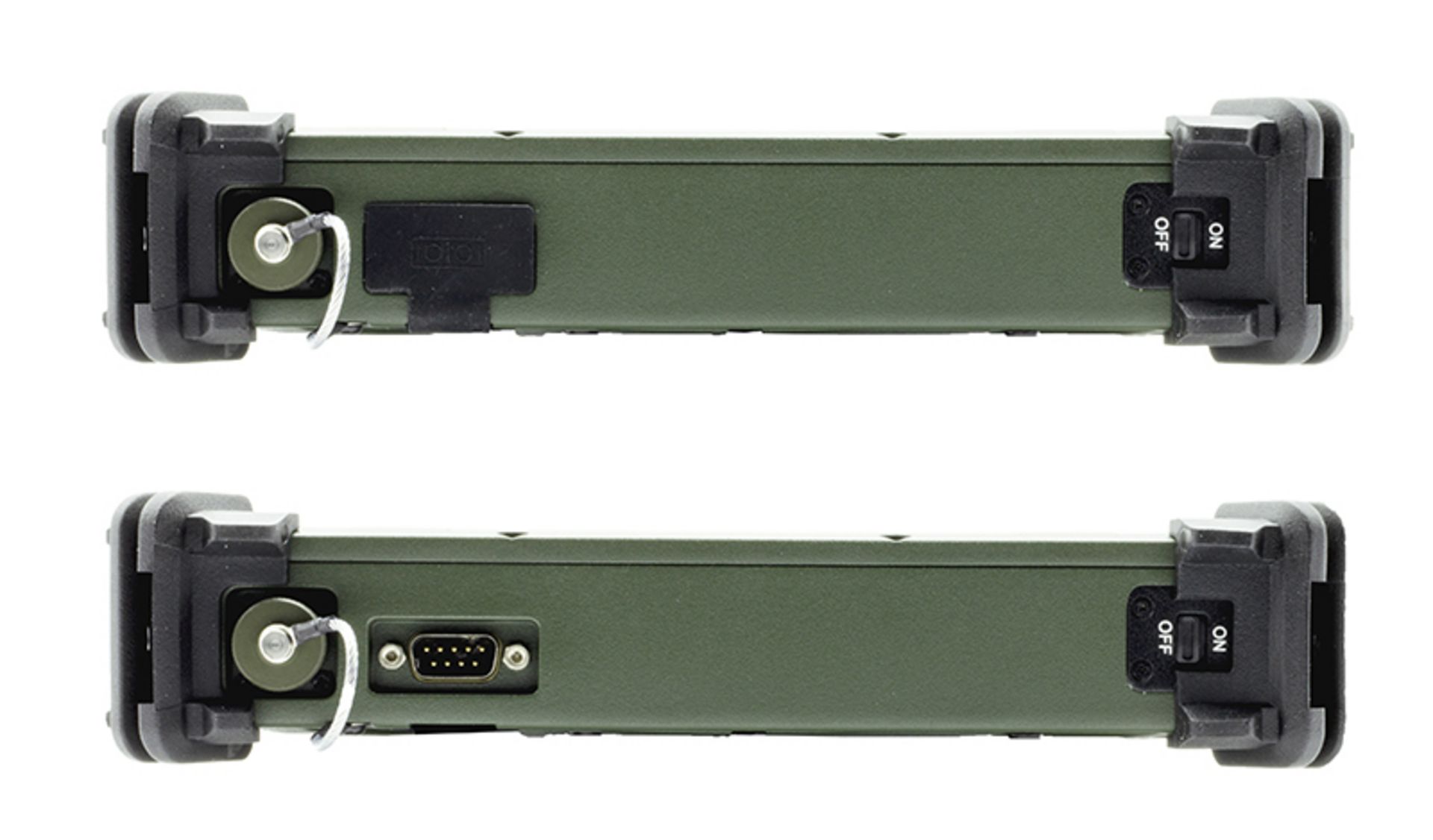

roda Panther DK13 right side

Technical specification

Display

  • LCD 12.1“ XGA (1024×768)
  • LED backlight
  • Sunlight readable

Touch

  • Resistive single touch screen

CPU

  • Intel® 7th Gen. Core™ i7-7600U processor, 4 MB cache, up to 3.90 GHz

Chipset

  • Intel® Kaby Lake U platform

Graphics

  • Intel® HD Graphics 620

Memory

  • DDR4 2133 MHz
  • Up to 32 GB (1x SO-DIMM slot)

Storage

  • Exchangeable 2.5” SATA III SSD

Camera

  • Optional: Webcam 1MP

Interfaces

  • 2x USB3.1 (1x fast charge)
  • 1x GBit LAN (RJ45)
  • 1x COM (DB9)
  • 1x DC-In (2-Pin)
  • 1x ExpressCard/54
  • 1x SD card slot
  • 1x SIM card slot
  • 1x docking connector for DockLite DL
  • Optional:
    • 1x MIL DC-In
    • 1x DockLite DL port replicator

Connectivity [WLAN / BT / GPS]

  • Optional:Intel® Dual Band Wireless AC9260
    • WLAN 802.11 a/b/g/n/ac
    • Bluetooth 5.0
  • Optional: Ublox Neo-M8N GPS/GLONASS

Power supply

  • Li-ion battery, 10.8 V, 8700 mAh
  • AC-adaptor 90 W, 100-240 V, 50-60 Hz
  • Integrated vehicle adaptor 12-32 V with surge protection

Security

  • TPM 2.0

Operating System

  • Windows 10 Pro

Dimensions [W×H×D]

  • 310 x 255 x 54 mm

Weight

  • 2.50 kg

Protection class

  • IP65

Certification

  • MIL-STD-810G
  • MIL-STD-461G Ground Navy
  • Optional:MIL-STD-461G Ground Army
  • Optional: VG95373

TEMPEST

  • Optional: SDIP 27 Level B (ER)

Accessories


Standard AC-Adapter 90W
for 2-pol Industry or 3-pol MIL-connections
AC90 | MIL AC adaptor
90W, IP65, MIL-STD-810/461, TEMPEST
ROD01.2 | MIL DC/DC converter
80W, IP65, MIL-STD-810/461, TEMPEST
StandUnit
table mount or for vehicle mounting
Ext. battery charger
for Panther DK series
DockLite port replicator
for Panther DR/DK series
