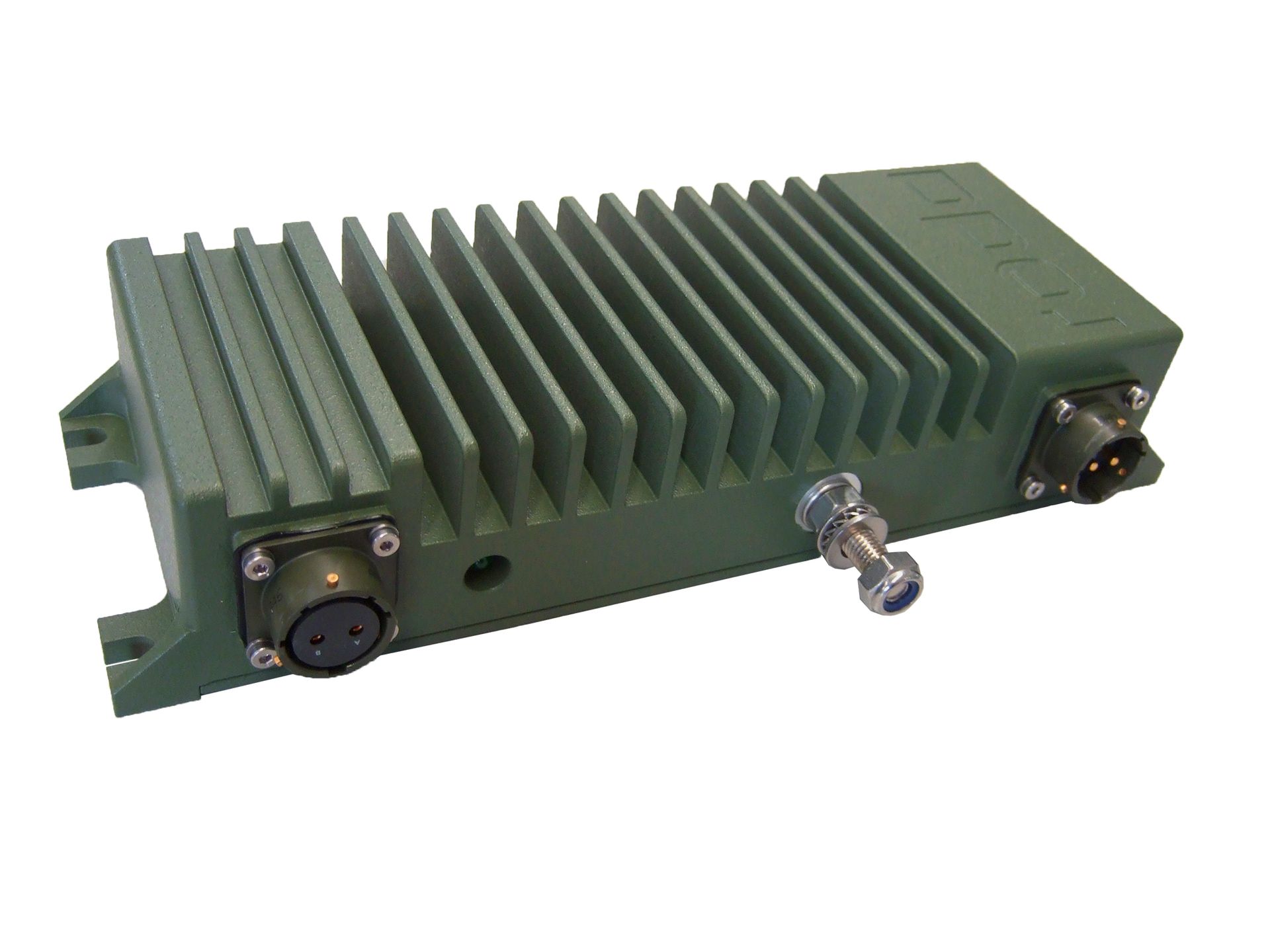

DC/DC converter ROD modular

120/200 W DC vehicle adapter

The DC-DC converter series ROD Modular offers an unprecedented versatility as an external vehicle converter, made in Germany.

For the common vehicle battery voltages of 24 VDC two power classes 120W and 200W are available in the same form factor. The output voltages (VOUT) are factory set with 12 V, 15 V, 19 V, 24 V, 28 V or 48 V. At the customer's request, two outputs can also be realized, e.g. to operate a laptop and a display simultaneously via the converter.

Analogous to the standard converter ROD01.2 for the Rocky Laptop (80W), the ROD Modular has now been implemented with higher performance according to the German Army's grounding concept VG96916T5 and transient / surge protection MIL-STD1275E. The IP65 housing and triple-filtering also provide very good EMC properties, so that the product can also be used as a Tempest variant.

Usable primarily for vehicle integration as a complementary product to the roda notebooks and displays it can also be used for third-party products with corresponding power and output voltage.



Technical specification

Special features

  • according to VG 96916-5 and MIL-STD-1275E for characteristics of DC Input on land vehicles
  • internal filter for spike and transient suppression
  • green power LED
  • galvanically isolated input and output to ground
  • galvanically isolated from input to output
  • same footprint for all input and output voltages variants

Interfaces

  • X1: Input  62GB-12E14-02PN
  • X2: Ouput 62GB-12E14-02SN
  • grounding bolt M8 x 30

Safety

  • overvoltage
  • overcurrent and short circuit protection
  • CE
  • EN 55032:2015
  • EN 55024
  • EN 60529
  • EN 50581

EMI

  • MIL-STD-461G

TEMPEST

  • Optional: Zone 1
  • Optional: SDIP 27 Level B
  • Optional: -60 dB Filter

Protection class

  • IP65 according to EN 60529

Cooling

  • convection cooling

Housing

  • milled aluminum

Fixation

  • flange eyelet with long hole

Colour

  • passivated nato oliv, RAL 6031HR
  • labeling: lemon yellow, RAL 1012

Dimensions

  • ca. 278 x 90 x 50 mm (L x W x H) incl. fixation points

Weight

  • ca. 1.7 kg



ROD modular overview

Power Input Output Current (nom.) Type
120 W
24 VDC
(16 - 33 VDC)		 12 VDC (±5%) 10.00 A ROD 12-24-120
15 VDC (±5%) 8.00 A ROD 15-24-120
19 VDC (±5%) 6.32 A ROD 19-24-120
24 VDC (±5%) 5.00 A ROD 24-24-120
28 VDC (±5%) 4.29 A ROD 28-24-120
48 VDC (±5%) 2.50 A ROD 48-24-120
Power Input / VDC Output / VDC Current (nom.) Type
200 W
24 VDC
(16 - 33 VDC)		 12 VDC (±5%) 16.67 A ROD 12-24-200
15 VDC (±5%) 13.33 A ROD 15-24-200
19 VDC (±5%) 10.53 A ROD 19-24-200
24 VDC (±5%) 8.33 A ROD 24-24-200
28 VDC (±5%) 7.14 A ROD 28-24-200
48 VDC (±5%) 4.17 A ROD 48-24-200

*200W-Version also with 2nd DC-Output available (optional)
