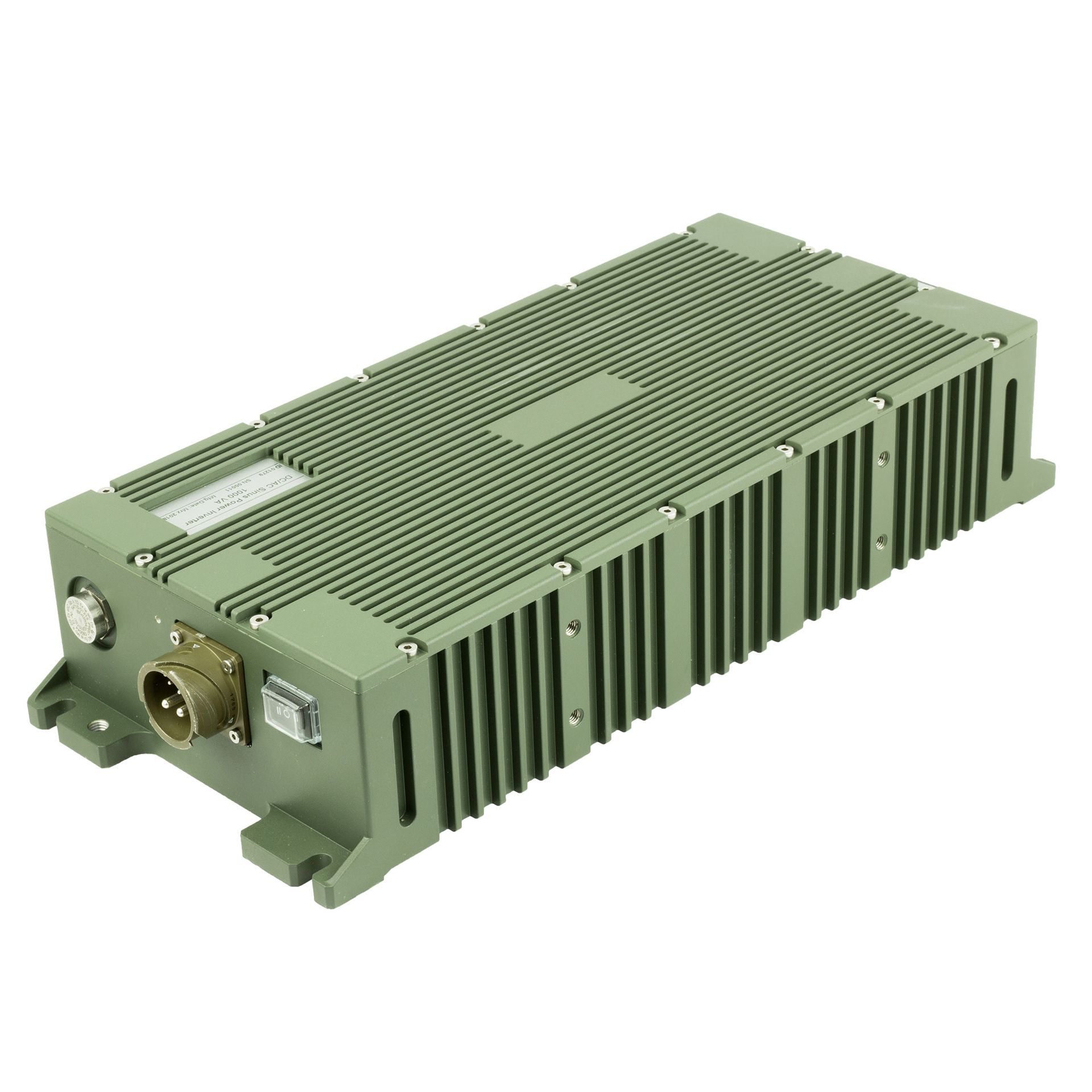

Inversis 1000

full rugged sine wave inverter

roda sine wave inverters convert battery-fed electrical energy of 24 V voltage into a stabilised, quartz-accurate AC voltage of 230 V, 50 Hz or 60 Hz (factory adjustable) with high efficiency. The voltage is purely sinusoidal and corresponds exactly to the 230 V voltage of the electricity suppliers. Only a true sinusoidal voltage guarantees gentle and trouble-free operation of all connected loads, especially inductive and mixed loads (e.g. drills). Inexpensive inverters with trapezoidal or square-wave output voltages can significantly impair and/or damage the function of connected equipment, which can be decisive for the success of your mission.

Technical specifications

Input Voltage

  • 24 VDC

Input voltage range

  • 18 - 32 VDC

No load current

  • 0,8 A @ 24 VDC

Output voltage

  • 230 VAC / ± 5%

Frequency

  • 50 Hz ± 0,5%
  • 60 Hz by factory setting“

Output power

  • 1000 VA

Maximum power

  • 1150 VA (1 Min.)

Peak power

  • 1750 VA (1 Sec.)

Output form pure sine

  • (THD <5% @ normal load)

Efficiency

  • typ. 89%

voltage indicator (Input)

  • LED Red / Orange / Green

load indicator (Input)

  • LED Red / Orange / Green

Status indicator

  • LED Red / Orange / Green

Elektronic protection function

  • overload, short-cuircuit, polarity reversal,
  • over/under input current,
  • overtemperature, residual current (RCCB) protection

Safety

  • UL458, EN60950-1

Certification

  • IP65 DIN EN60529,
    Design to meet MIL-STD 810G,
    Design to meet MIL-STd 461G

Temperature range operation:

  •  -31°C to +60°C

Storage:

  • -40°C to +70°C

Cooling:

  • convection

EMC

  • EN55022,
  • EN55024, EN61000-4-2, 3, 4, 5 ,6, 8, 11 EN6100-3-2, -3-3
  • MIL-STD461G, CE102 (Basis Curve),
  • RE102-4 (Navy Fixed & Air Force)

DC-plug

  • VG95234A-20-8PN

AC-plug

  • ECTA Series 1331M 303A MS possible with
    Schuko or BS1363 via adapter cable

Housing

  • Aluminium

Dimensions (LxWxH)

  • 420 x 180 x 86 mm

Weight

  • < 7,5 kg
