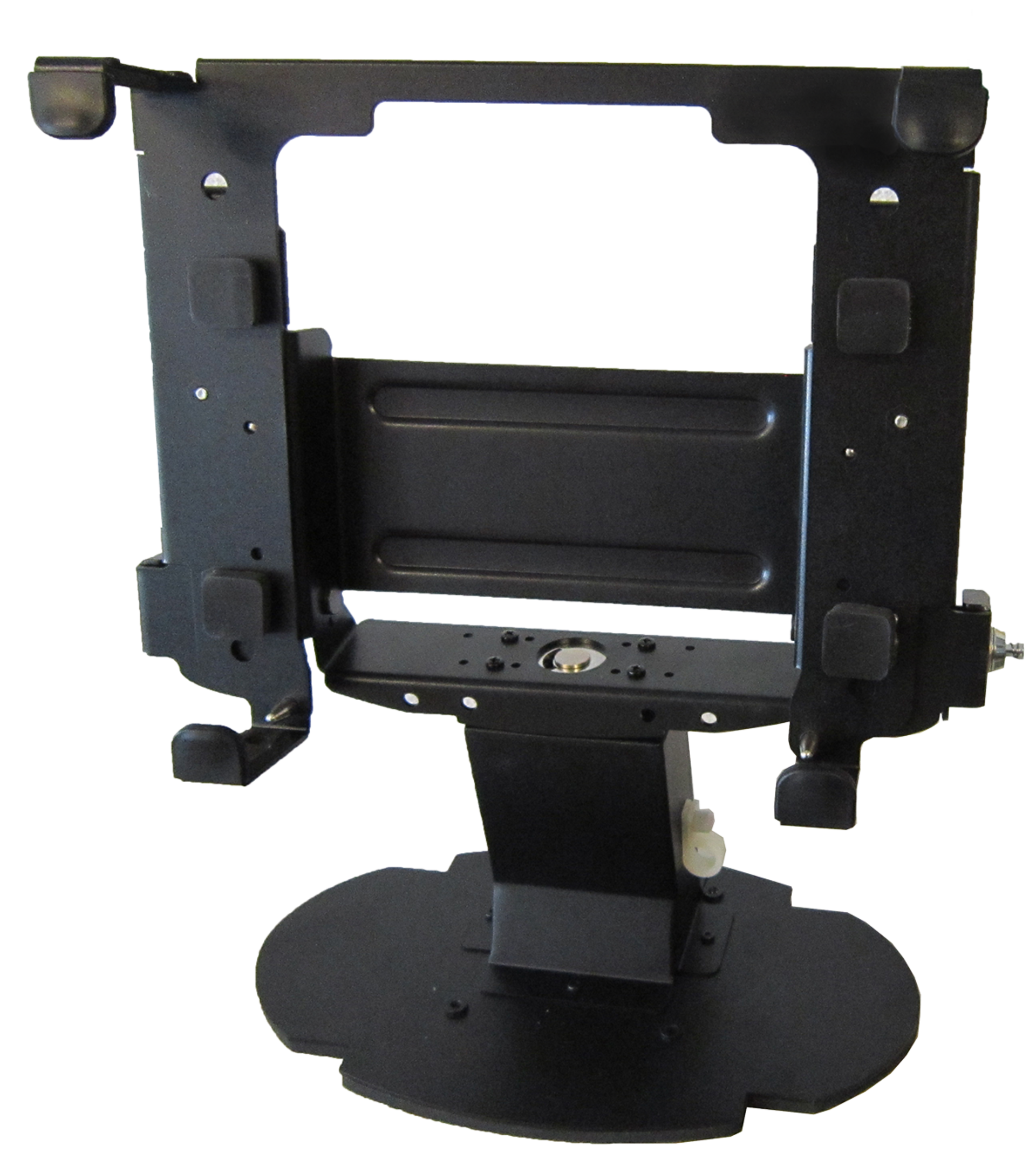

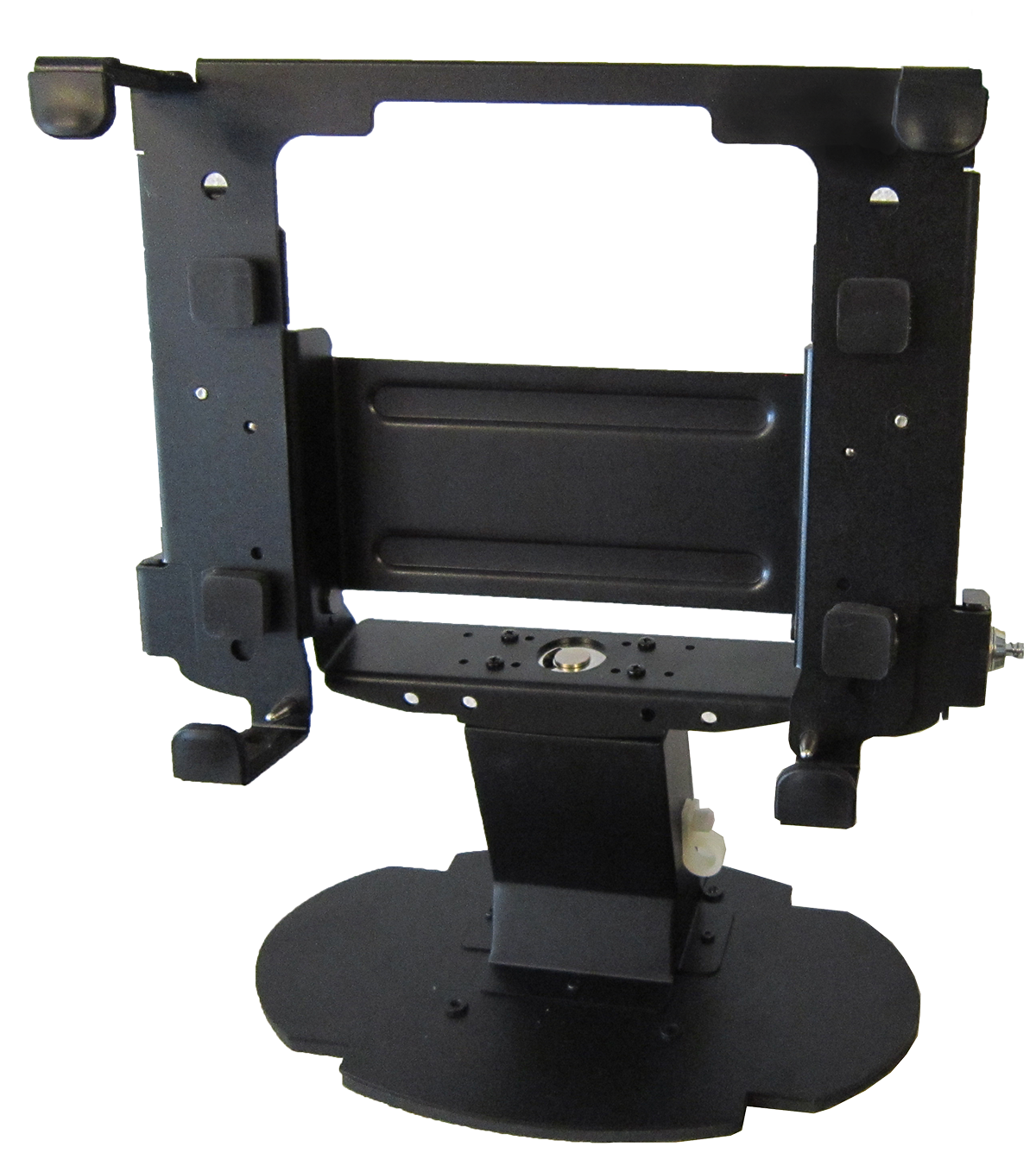

StandUnit

For mounting Panther tablet PCs as a table mount or for vehicle mounting

The StandUnit offers a suitable mounting system for the Panther DR and DK series. The standard versions are equipped with a stand and can be used, for example, as a table mount. In addition, the stand can be screwed in place for secure mounting. On customer request, the stand can also be equipped with an articulated arm for vehicle mounting instead of the stand.

The StandUnit is equipped with a rail system to securely mount the Panther devices in it and is designed so that they can be mounted in it including the DockLite port replicator. In addition, the system can be locked so that the Panther device cannot be removed by unauthorised persons.

Technical specification

Mounting

  • Fixation of the
    • Panther DR tablet PC
    • Panther DR tablet PC

Material

  • Aluminium, powder-coated

Colours

  • black RAL 9005

Dimensions [W×H×D]

  • Panther DR: 270 x 320 x 160 mm
  • Panther DK: 280 x 360 x 160 mm

Weight

  • Panther DR: approx. 2.00 kg
  • Panther DK: approx. 2.90 kg
