Mounting plate

For vehicle mounting for Lizard® or Rocky notebooks

With the matching mounting plate for the roda notebooks of the Lizard® and Rocky series, any device can be securely mounted and installed in vehicles, for example. The mounting plates have 4 holes for screwing the plate and corresponding mounting holes for the notebook. The mounting plates are available either as a stand-alone version with knurled screws or with quick-release screws to secure the devices. They are available in 4 sizes and fit the Rocky RK, Lizard® RS, Lizard® RW/RV or Lizard® RB units. As standard they are available in the colours Nato-Olive or black. However, other colours can be realised on request.

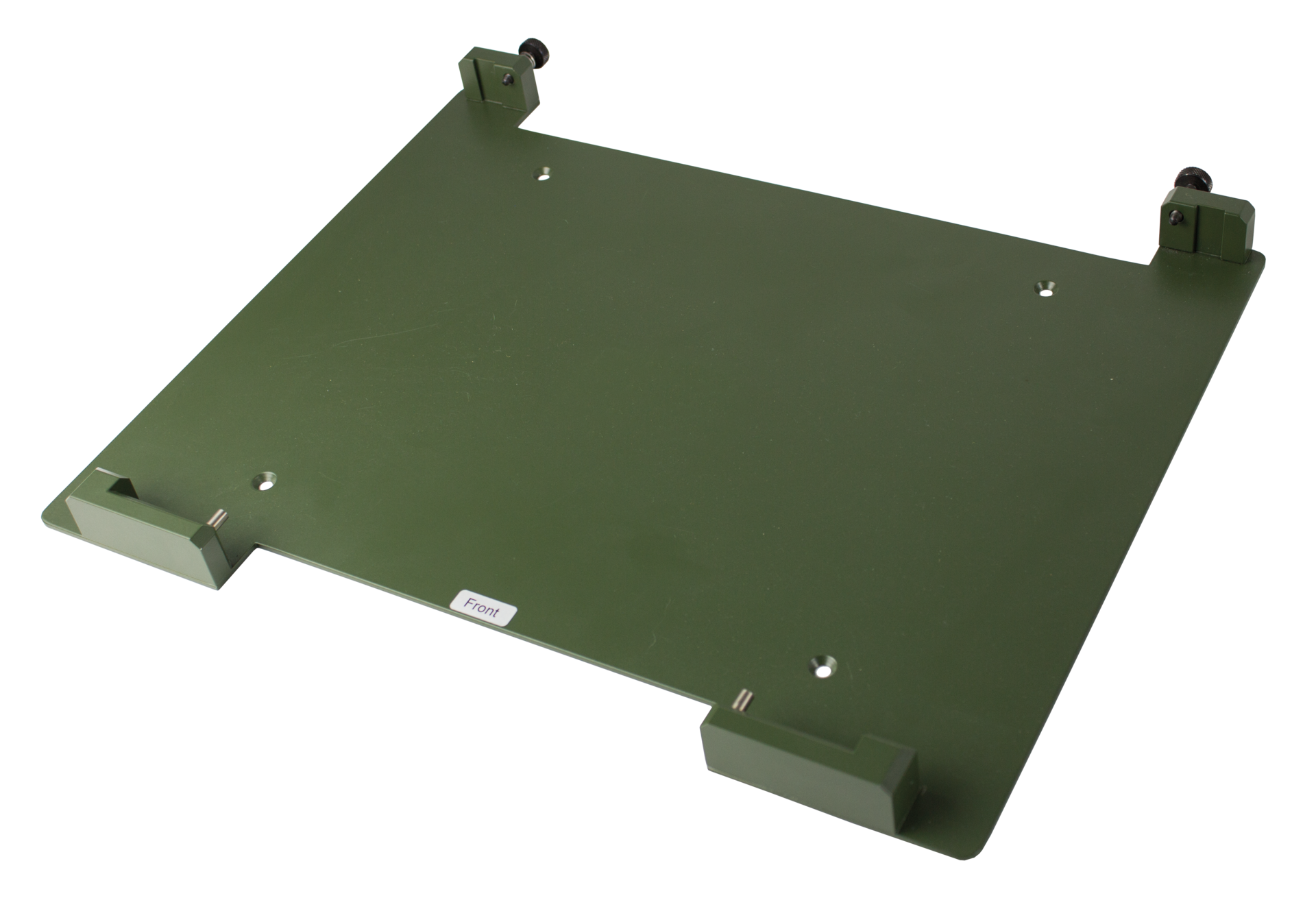

Mounting plate with knurled screws

Technical specification

Mounting

  • Fixation of the
    • Lizard® RV/RW Notebook
    • Lizard® RB notebooks
    • Rocky RK notebooks

Version

  • Version with knurled screws
  • Version with quick release fastener

Material

  • Aluminium, powder-coated

Colours

  • NATO green RAL 6031
  • black RAL 9005

Dimensions [W×H×D]

  • Lizard® RS: 338 x 109,5 x 27 mm
  • Lizard® RV/RW: 386 x 319 x 26 mm
  • Lizard® RB: 422 x 34.5 x 26 mm
  • Rocky RK: 351 x 321 x 28 mm

Weight

  • approx. 1.50 kg
