DSx Controller RC2143

RC2100 series HID Joystick Controller

The RC2143 is the second generation handheld controller from MilDef. Keeping true to the MilDef brand the RC2143 puts emphasis on low weight, ergonomics and a fully rugged design. With the RC2143 you will never lose control!





Built to take a beating

The Generic Robot Controller features durable plastic casing, rugged connectors for easy integration and will operate down to -20°C.

Guaranteed performance

Our products always come with a lifetime support to ensure your equipment maintains peak performance for many missions to come. We also serve units and stock spare parts for 5 years end-of-life.

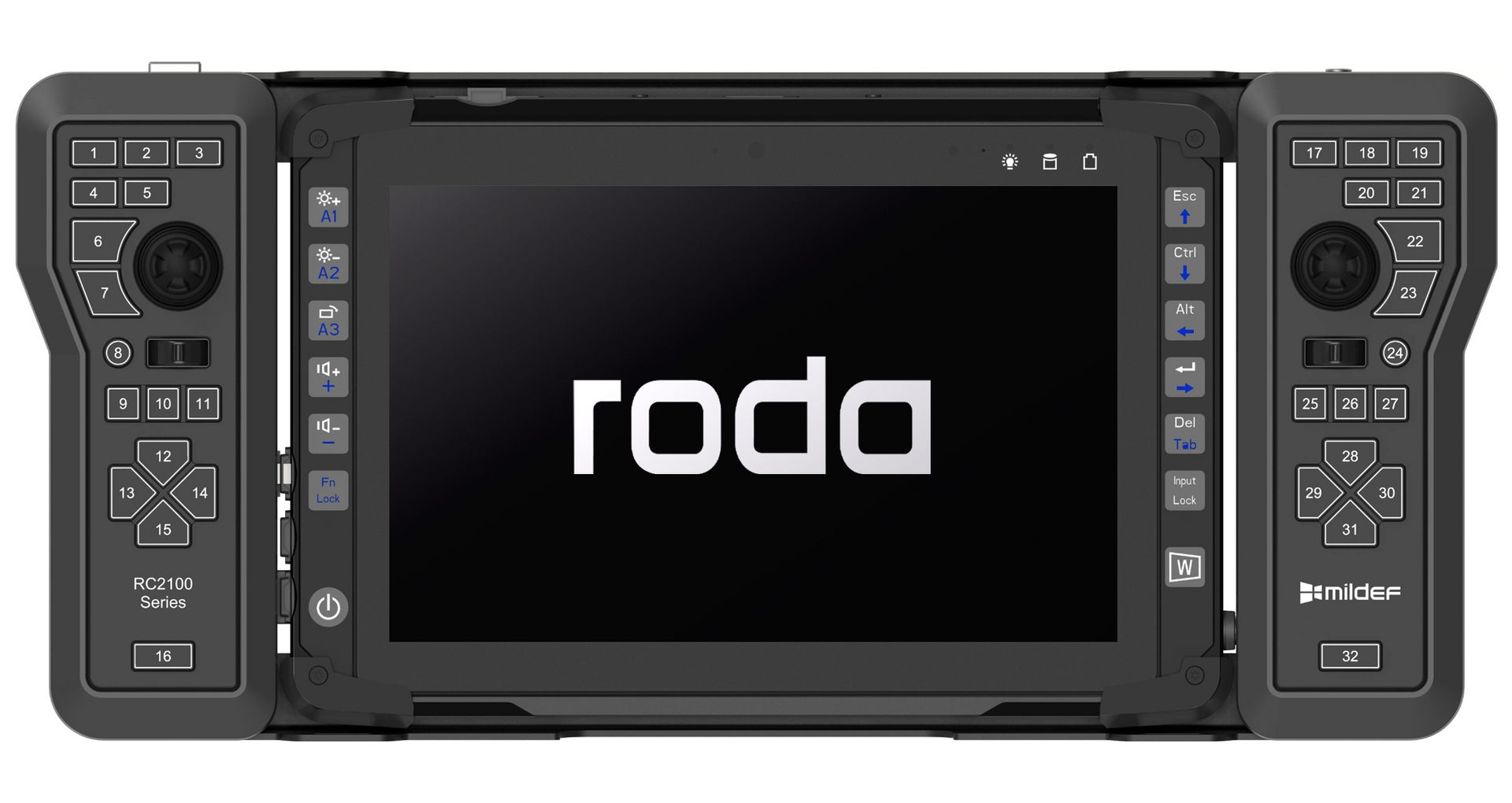

[Translate to Englisch:] DSx Controller RC2121

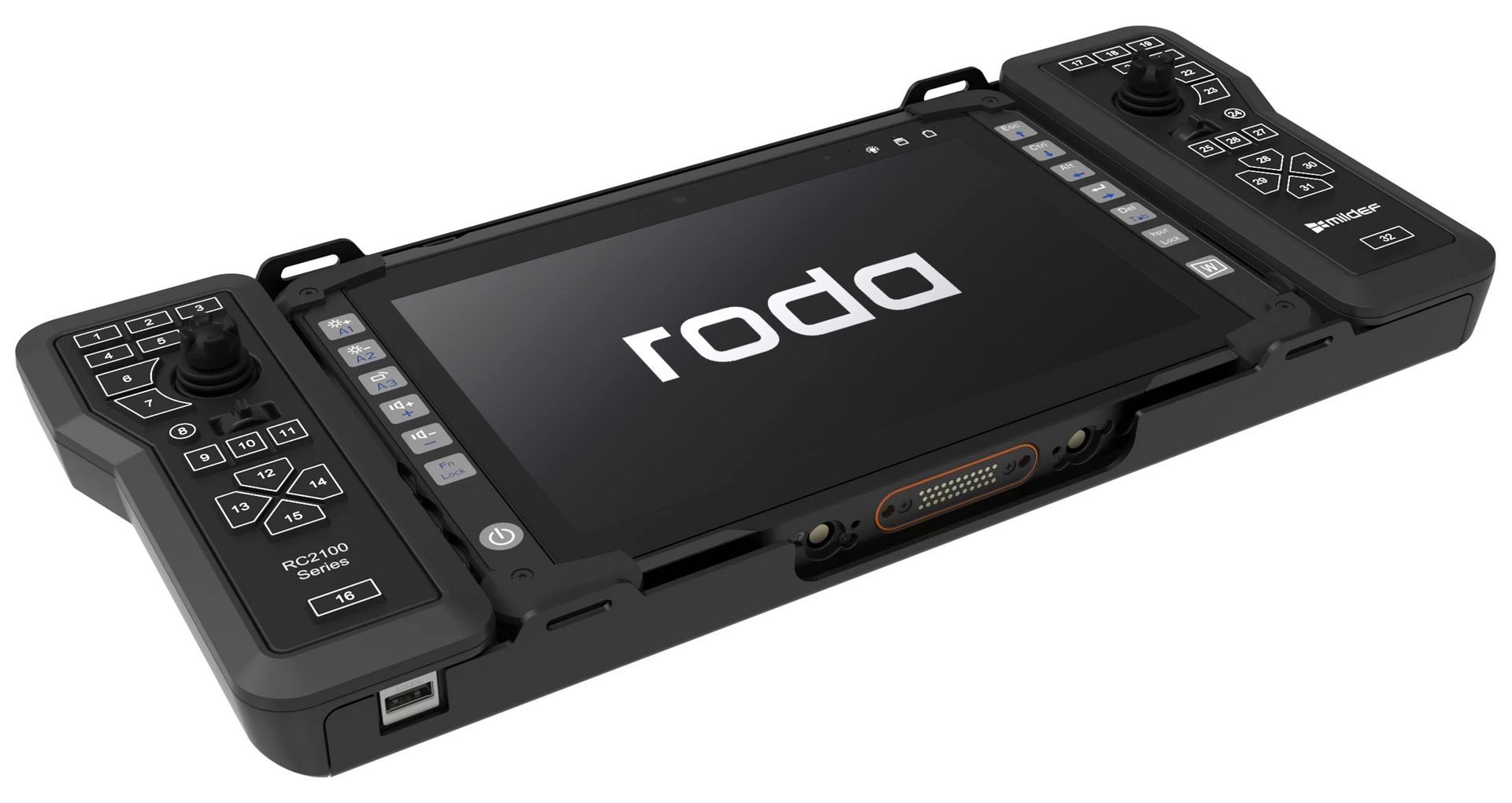

[Translate to Englisch:] DSx Controller RC2121

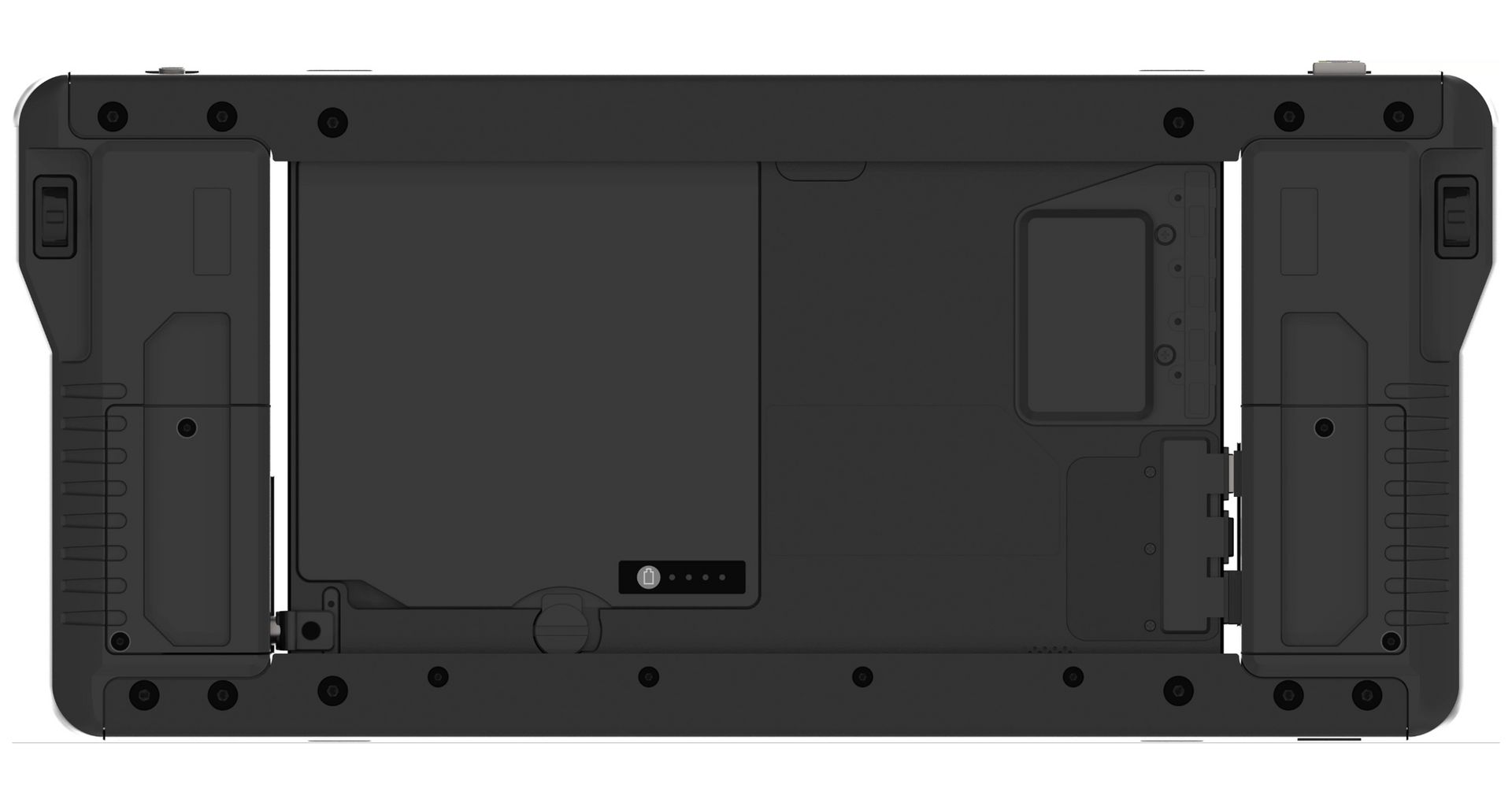

[Translate to Englisch:] DSx Controller RC2121
[Translate to Englisch:] DSx Controller RC2121
[Translate to Englisch:] DSx Controller RC2121

Technical Specification

Interfaces

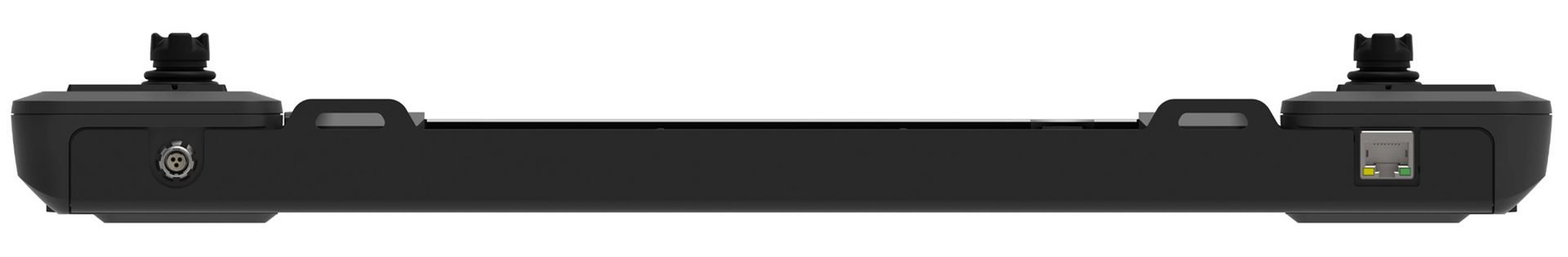

top:

  • 1x Pass through - ETH1000BASE-T
  • 1x Pass through - Powerinput tablet

left side:

  • 1x ETH cable to tablet
  • 1x USB 2.0 cable to tablet

right side:

  • 1x Power cable to tablet

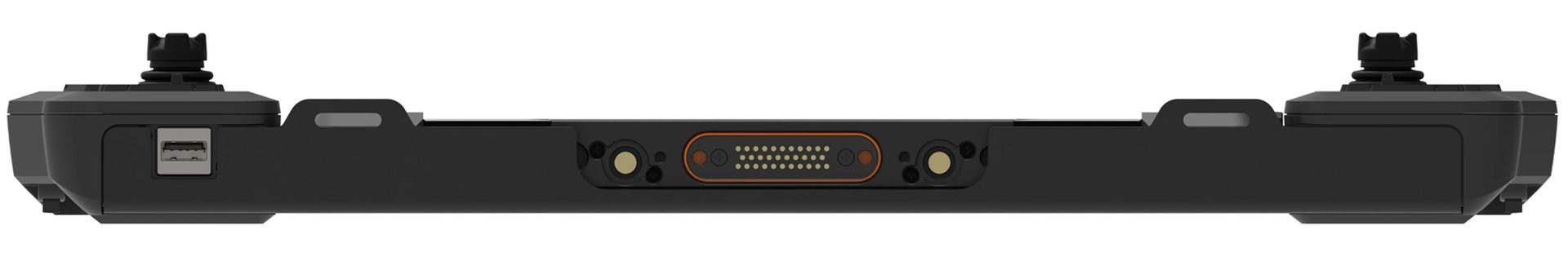

bottom:

  • 1x USB 2.0 Host interface

Buttons

  • 32x Buttons with backlight (front)
  • 2x Joystick (front)
  • 2x Thumb wheel (back)
  • 2x Thumb wheel (front)

Supported Tablets

  • Panther DS11
  • Panther DS13

USB HID

  1. USB HID Joystick

Power consumption

  • 2.5 W

Power input

  • 5 VDC

Power supply

  • Powered by tablet

Battery hot swap

  • Support tablet battery hot swap

Neck strap

  • Support the use of a neck strap

Weight

  • < 1000 g (2,2 lbs)

Environmental Specification

High temperature - Operating

  • MIL-STD-810G, method 501.5, Procedure II - Operation 60 °C (140 °F)

High temperature - Storage

  • MIL-STD-810G, Method 501.5, Procedure I - Storage 71 °C (160 °F)

Humidity

  • MIL-STD-810G, Method 507.5, Procedure II - Aggravated 95 ± 4 %rh Ten 24-hour cycles

IP Class (Solid Particle Protection)

  • IP Class 6X

IP Class (Water)

  • IP Class X5

Low air pressure - Operating

  • MIL-STD-810G, method 500.5, Procedure II - Operation/AirCarriage 4572m (15.000 ft)

Low temperature - Operating

  • MIL-STD-810G, method 502.5, Procedure II - Operation -20 °C (-4 °F)

Low temperature - Storage

  • MIL-STD-810G, method 502.5, Procedure I - Storage -40 C (-40 °F)

Noise level

  • Maximum noise level of 40dB SPL A-weighting @ 1m (3,3 ft) distance

Transit drop

  • MIL-STD-810G, method 516.6, Procedure IV - Transit Drop. Table516.6-VI, Transit drop test, < 45.4kg, < 91 cm, Manpacked or man-portable

Vibration - Helicopter

  • MIL-STD-810G. Method 514.6, Procedure I - General vibration, Category 14 - Rotary wing aircraft -helicopter

Vibration - Loose Cargo

  • MIL-STD-810G. Method 514.6, Procedure II - Loose cargo transportation, Category 5 - Truck/trailer - loose cargo

Vibration - Tracked Vehicles

  • MIL-STD-810G. Method: 514.6 , Procedure 1 - General Vibration, Category 20 - Ground vehicles -ground mobile, tracked vehicles

EMI

CE EMI

  • EN61000-6-3:2007



CE EMS

  • EN55032:2015



EMI radiated RE102

  • MIL-STD-461F
  • 2MHz – 18Ghz
  • Navy Mobile & Army

ESD

  • EN61000-4-2:2009 Level 3
  • EN50024:1998 Performance criteria
  • B + A1:2001 + A2:2003
