Enduro Series

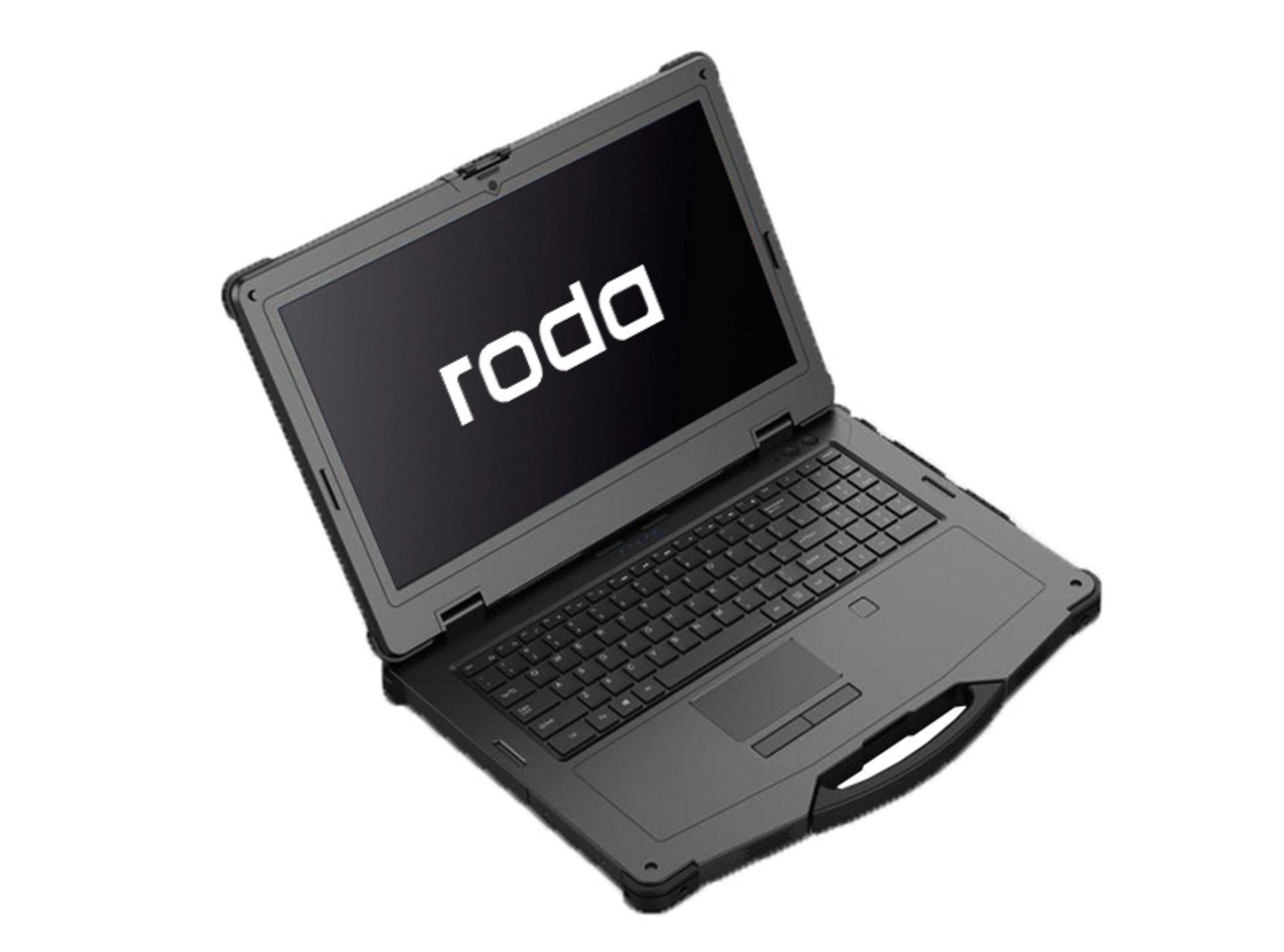

Enduro UX15

rugged 15" Notebook

The price-performance ratio of the Enduro UX15 is unbeatable for a rugged 15.6” notebook designed for professionals in the military, field service, transportation and public safety. Enduro UX15 sets up a new definition for rugged laptops by passing a 3 feet (100 cm) free-drop test and IP65 rating protection. It provides exceptional computing, powerful graphic performance, various wireless connection and long battery life in a balanced factor among display size and weight.

Attention:

For some regions of the sale, these laptops will be promoted under a different modell name.
For more information, contact your regional office.

Technical specifications

Display

  • 15.6“ FullHD LCD (1920x1080)

Chipset

  • Intel® Kaby Lake R plattform

CPU

  • Intel®Core™i5-8250U processor (6M cache, up to 3.4GHz)

Graphics

  • Intel®HD Graphics 620

Memory

  • 8 GB SO-DIMM DDR4
  • optional: 16GB DDR4 (only with i7 CPU)

Hard disk

  • M.2 NVME SSD  128 / 256 / 512 GB
  • optional 2.5“ SSD/HDD drive

Audio

  • 2x internal speaker
  • 2x internal digital stereo microphone

Webcam

  • 2.0 Mpixel front camera

Buttons

  • power
  • pinhole button
  • 1x screen lock

Wireless connections

  • Bluetooth 4.1, Intel® Dual Band
  • Wireless-AC  8260 (802.11a/b/g/n/ac)

Connections

  • 2x USB3.0
  • 1x USB2.0
  • 1x serial DB9 COM
  • 2x RJ45 LAN
  • 1x HDMI
  • 1x SD card slot
  • 1x audio (headphone)
  • 1x DC-In

Security

  • TPM 2.0
  • Kensington Lock
  • optional finger print scanner

Power supply

  • Li-polymer battery, 2000 mAh, 7.4 V
  • optional 2nd battery 6200 mAh, 7.4 V
  • AC-adapter: 100-240 VDC, 65 W, 50/60 Hz

OS

  • Windows 10 Professional

Certification

  • CE/RED
  • FCC
  • IP65
  • MIL-STD 810G

Housing

  • Thermoplastic Polyurethane (TPU)

Colour

  • black

Dimensions

  • 397 x 271 x 37 mm (W x D x H)

Weight

  • 3.2 kg

Options

  • CPU Upgrade: Intel® Core™i7-8550U (8M cache, up to 4.0GHz)
  • LCD Upgrade: SLR LCD 300cd/cm², AR FILM
  • Touchscreen: 10 fingers capacitive with gorilla glass
  • WLAN: WIFI 802.11(a/b/g/n/ac) + BT 4.2 module
  • GPS: u-blox-NEO-7 module
  • WWAN: 3G or 4G/LTE module
  • NXP NFC module 13.56MHz
    • Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol
    • card reading distance 4cm
  • SPI finger print module
  • 2.5“ HDD drive (500 GB, 1 TB)
  • 2.5“ SSD drive (up to 2 TB)
