Serval Series

Rugged display solutions

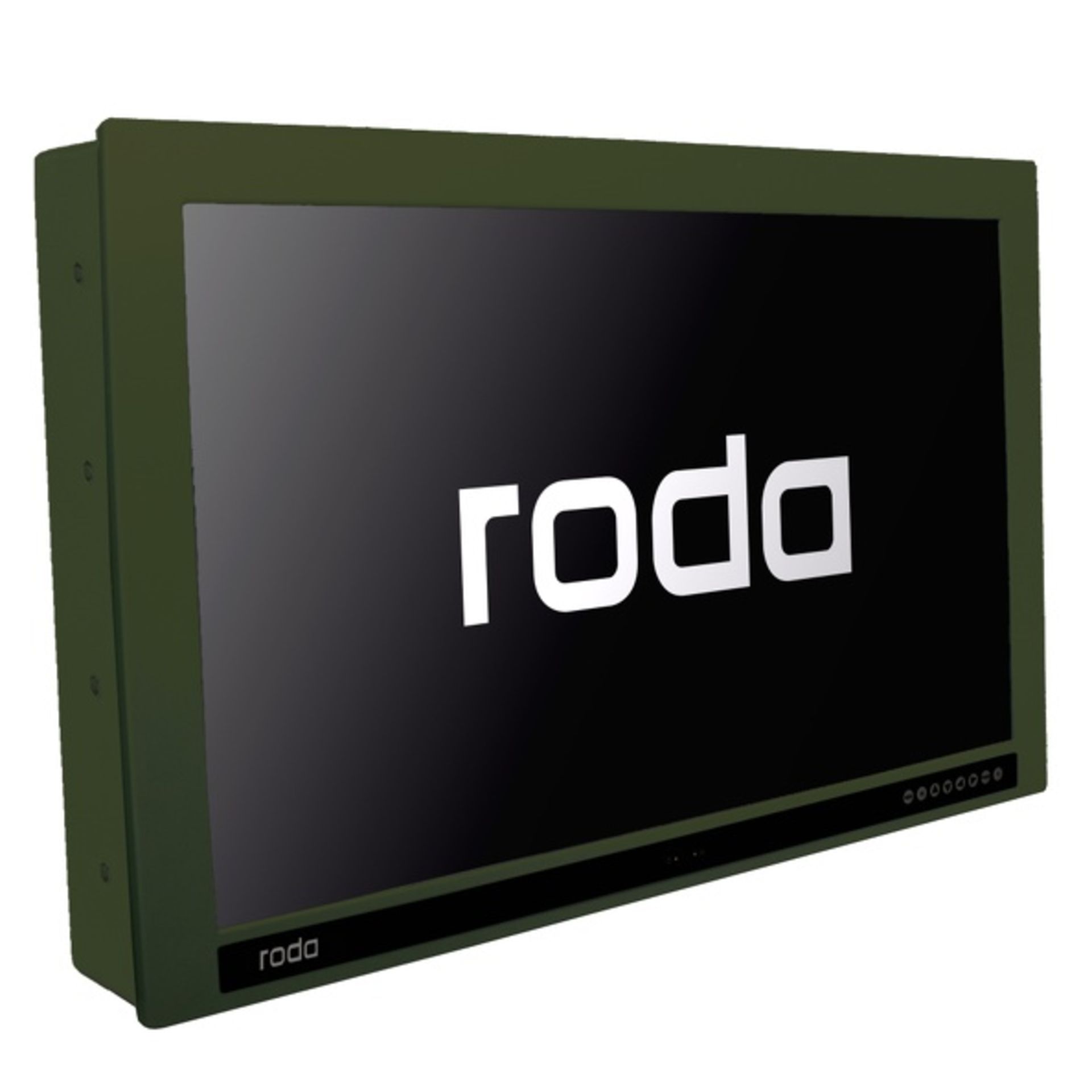

Serval RD40-UHD

rugged 40" display

All brilliant designs of the rugged roda RD series are MIL-STD810, MIL-STD461, and ≥ IP54 certified for use under almost all environmental conditions. As a standard model, they can operate under a temperature range of -20°C to +55°C. With its remote on/off function button/interface and metal housing, the RD series is particularly suitable when combined with a roda computer as well as for installation in protected and armoured vehicles and cabins that, due to space constraints, require a decentralised installation of computer and display. The system can be started at the touch of a button on the display. The perfect conditions for efficient operation!

Technical specifications

Display

  • 40" TFT colour display (101 cm visible area)

Resolution

  • UHD, 3840 x 2160 pixels

Aspect ratio

  • 16:9

Colour display

  • Display of up to 16.7 million colours

Viewing angles

  • vertical: 178° horizontal: 178°

Contrast

  • 4800:1

Brightness

  • type. 350 cd/m²

Interfaces

  • VGA *
  • DP-DVI *
  • 2x USB *
  • MIL Camouflage light / door contact switch
  • MIL DC-in

* The connections are available as standard connectors or also as rugged military round connectors

Reaction time

  • 8.5 ms (GtoG)

IP54 certification

  • designed to meet MIL-STD 810G
  • designed to meet MIL-STD 461F

Housing

  • hardened steel and aluminium housing

Colour

  • military green, other colours on request

Measurements

  • 1009 mm x 617 mm x 120 mm

Weight

  • approx. 40 kg

Options

  • Remote function key (switching on roda devices via the display)
  • Compatibility for night vision (for use with night vision goggles)
  • Dimmable for cloaked use / camouflage light
  • 4 handles
  • Hardened transport box
  • Display holders:
    • e.g., for vehicle installation
    • with feet
  • Touch screen with dual touch (capacitive)
