Serval Series

Rugged display solutions

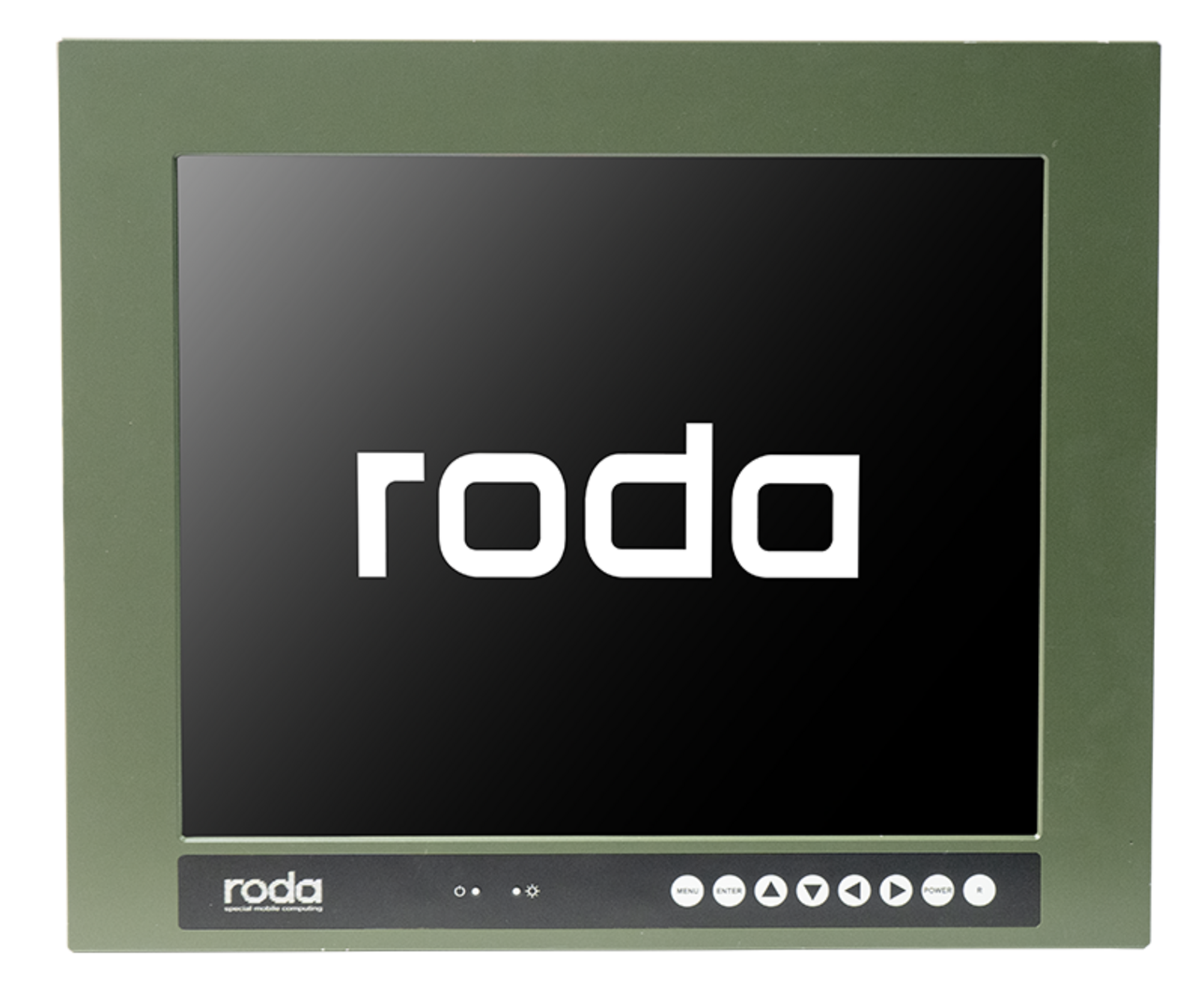

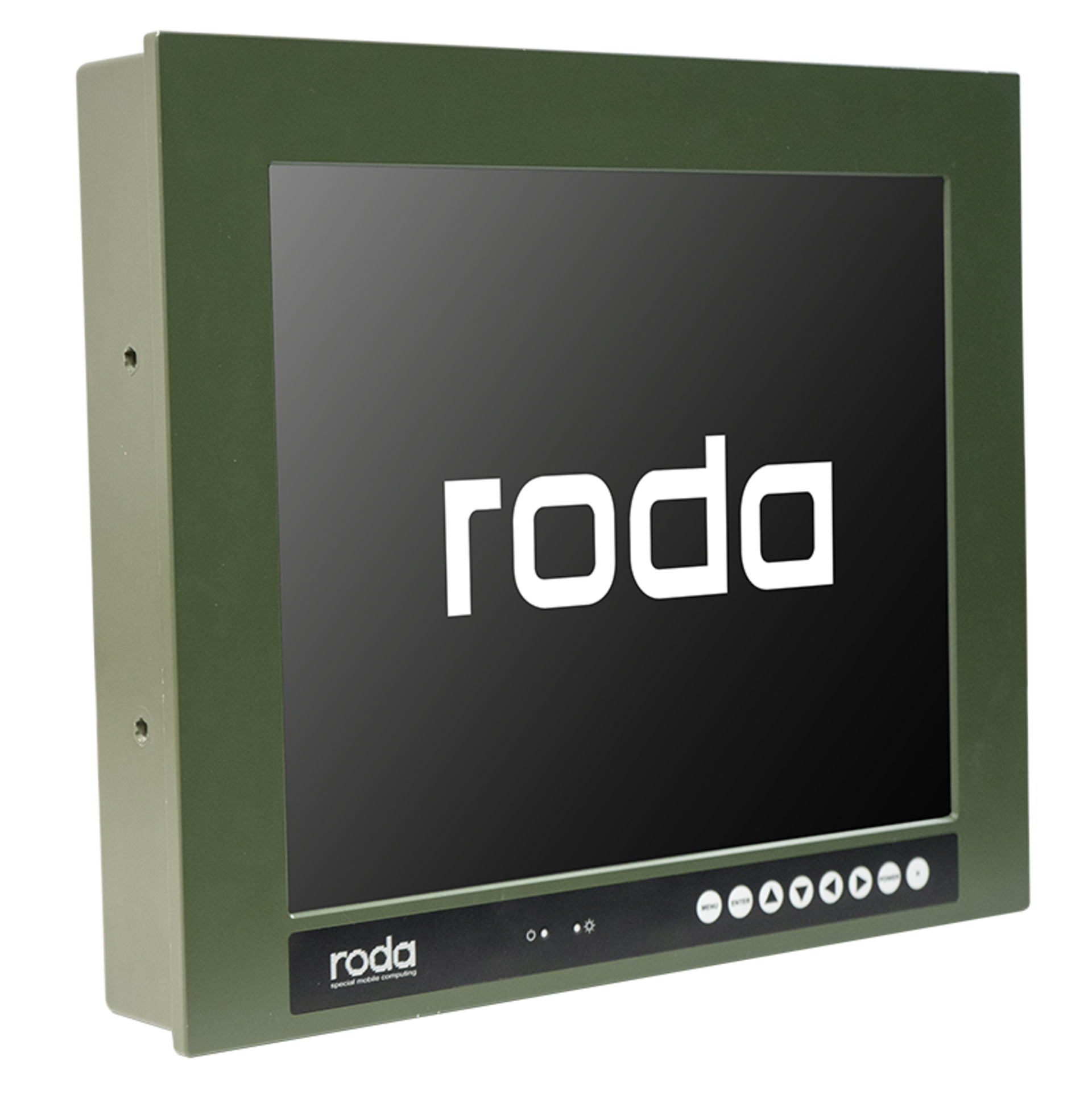

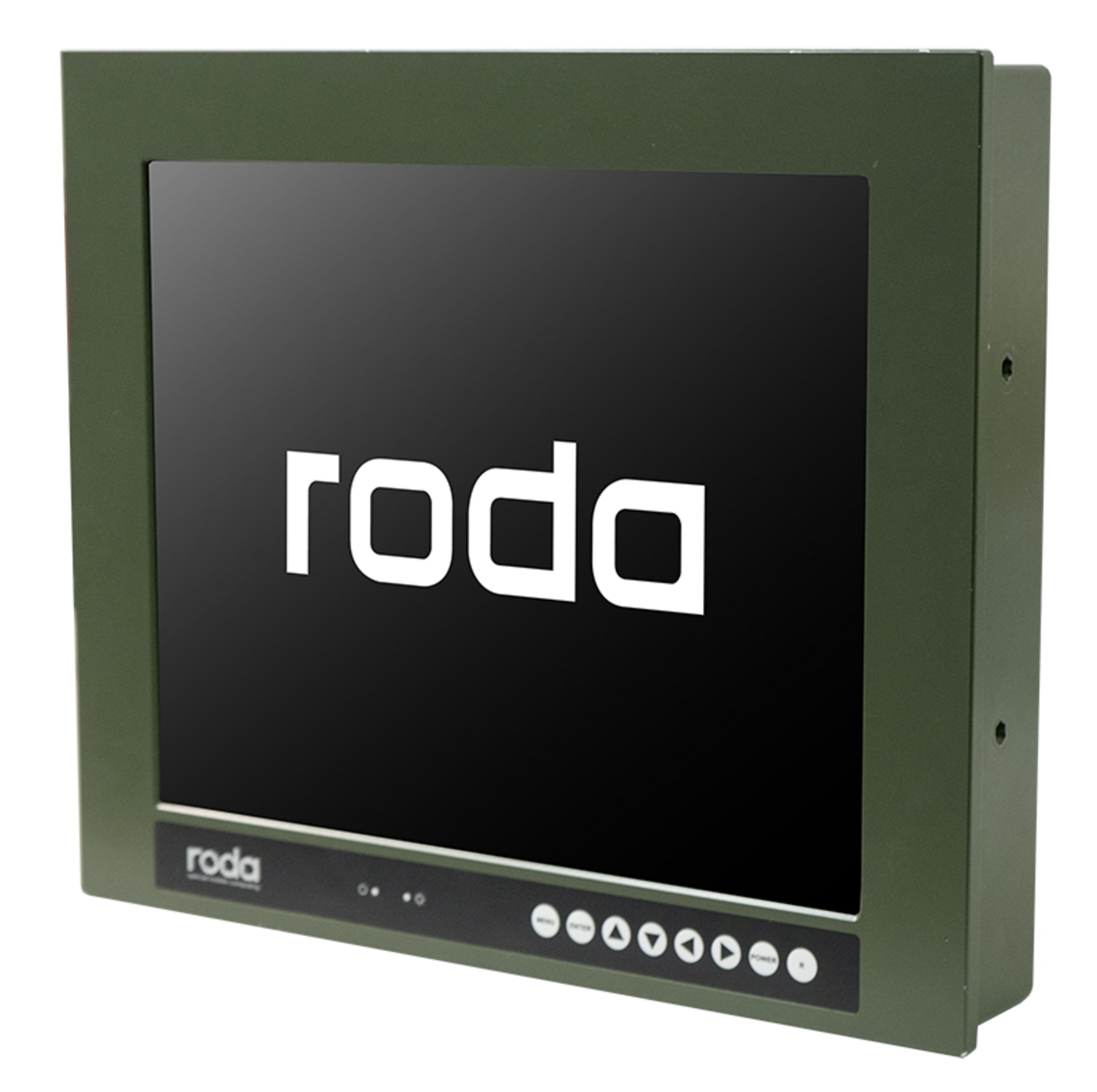

Serval RD19-SXGA

rugged 19" display

All brilliant designs of the rugged roda RD series are MIL-STD-810, MIL-STD-461, and ≥ IP54 certified for use under almost all environmental conditions. As a standard model, they can operate under a temperature range of -30 °C to +70 °C. With its remote on/off function button/interface and metal housing, the Serval series is particularly suitable when combined with a roda computer as well as for installation in protected and armoured vehicles and cabins that, due to space constraints, require a decentralised installation of computer and display. The system can be started at the touch of a button on the display. The perfect conditions for efficient operation!
The compact 19“ panel is available in a diverse range of versions and can be customised as well. The displays with and without touch screen, picture-in-picture (optionally with military connector), as well as blackout light functionality are frequently used under tough conditions. The Seval RD19-SXGA additionally convinces through its multi touch-capable SXGA display (1280x1024) and a brightness of up to 350 cd/m².



Technical specifications

Display

  • LCD 19“ SXGA (1280x1024)
  • LED backlight

Format

  • 4:3

Touch

  • Optional: resistive touch screen

Contrast

  • 1000:1

Brightness

  • Typ. 350 cd/m²

Color representation

  • Up to 16.7 million (8 bit/colors)

Viewing angle

  • Vertical: ±160 °
  • Horizontal: ±170 °

Reaction time

  • 10 ms (TON+TOFF)

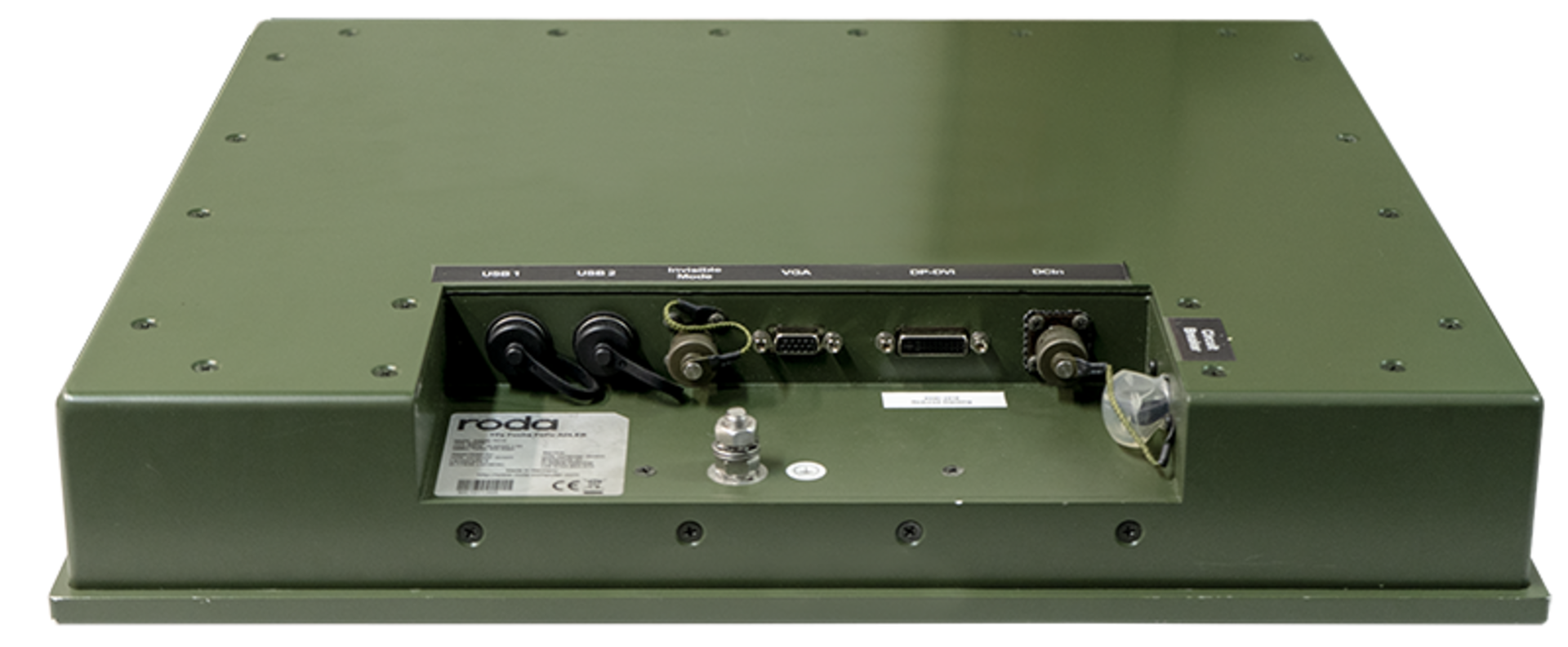

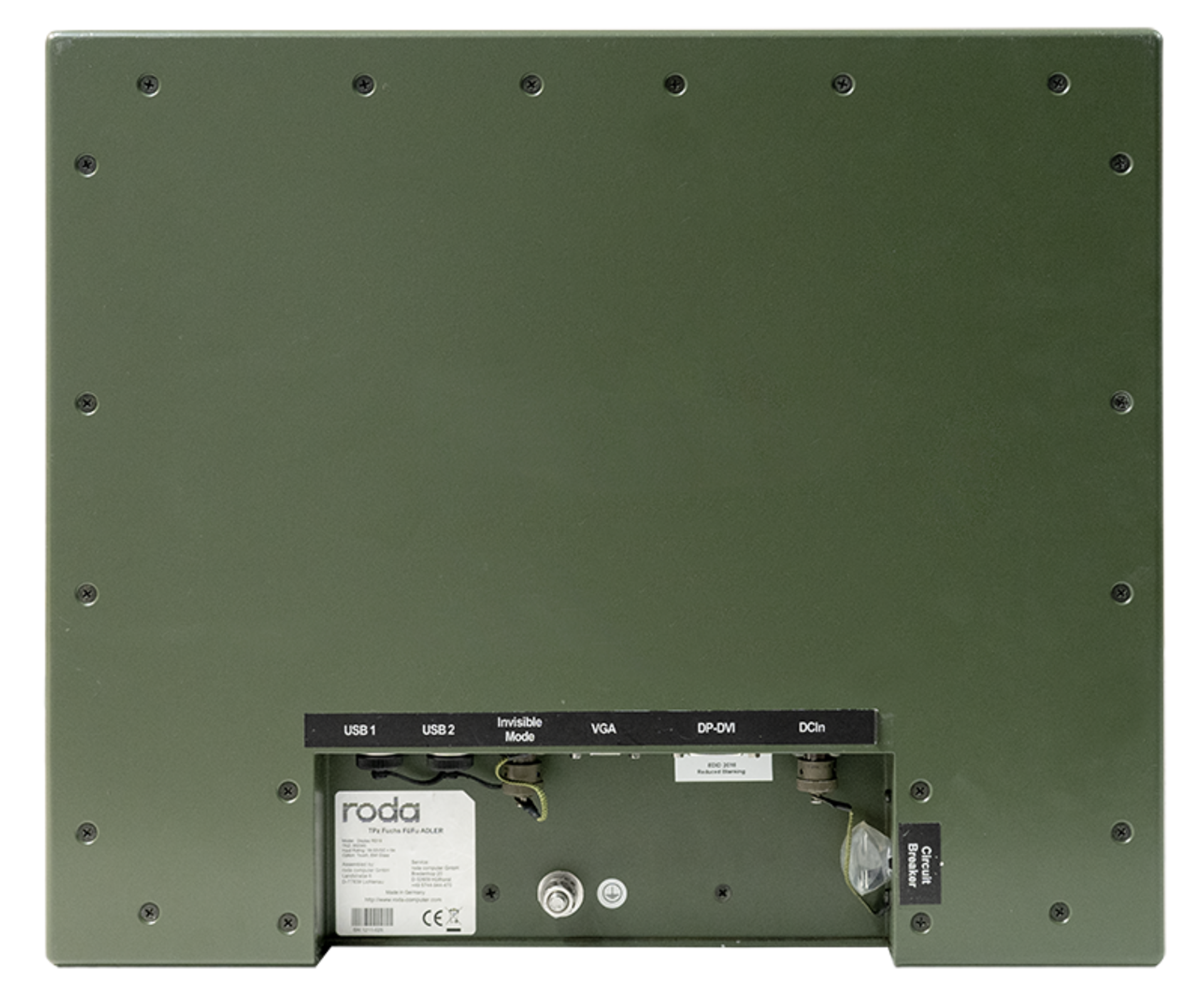

Interfaces

  • 2x USB 2.0
  • 1x VGA
  • 1x DVI (with roda display remote)
  • 1x MIL DC-In
  • 1x MIL camouflage function
  • Optional: All connectors also available in MIL version!

Keys

  • 8 keys OSD menu

Functions

  • Camouflage mode
  • Circuit breaker

Power Supply

  • 18-32 VDC, nominal 24 VDC
  • Power consumption ca. 85 W with heater
  • Optional: 230 VAC instead of 18-32 VDC input

Dimensions [W×H×D]

  • 480 x 405 x 77.5 mm

Weight

  • approx. 10.70 kg

Protection class

  • IP65

Certification

  • MIL-STD-810G
  • MIL-STD-461G (designed to meet)
